System series

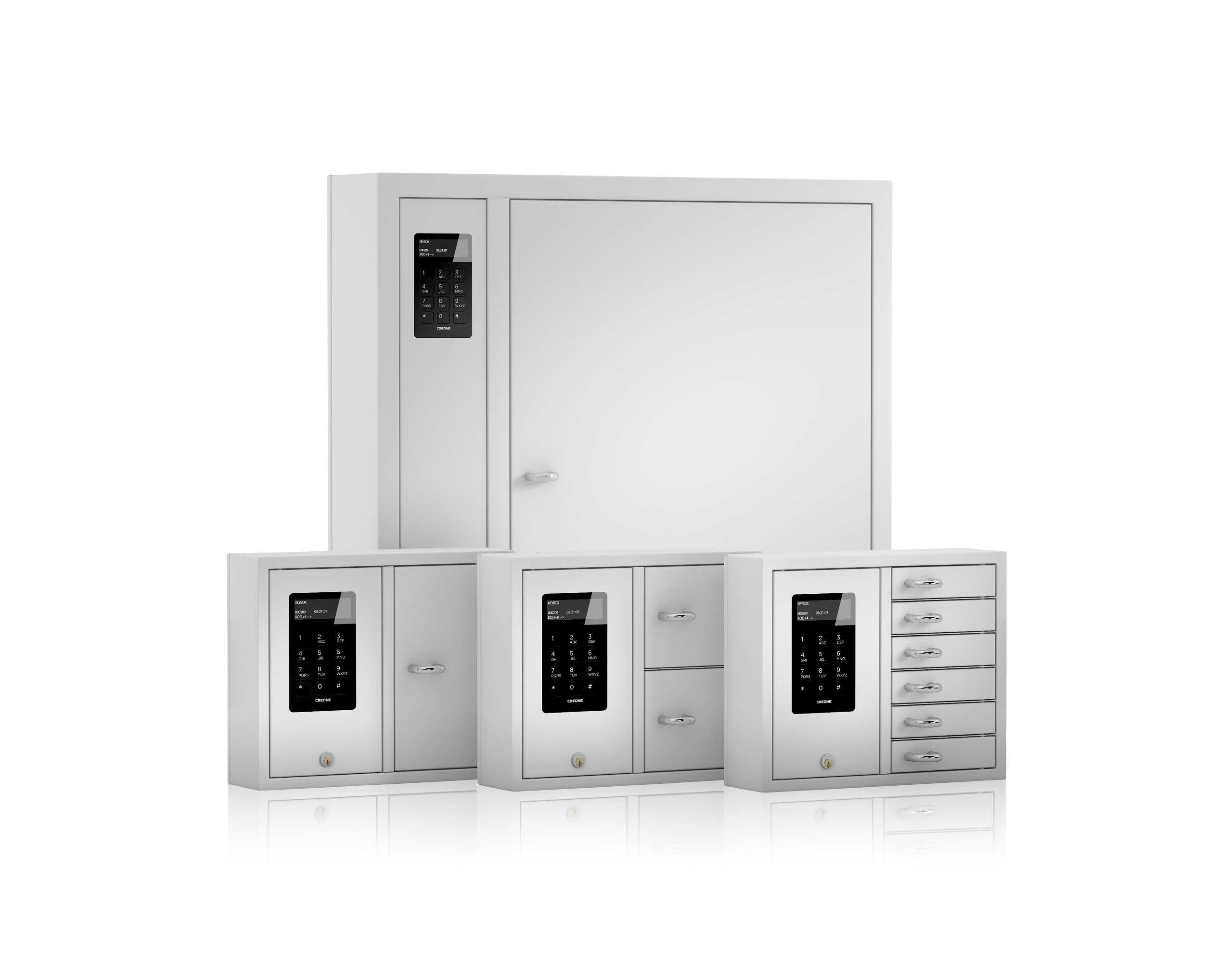

The System series is a flexible and intelligent series of key cabinets featuring a keypad with an easy-to-read display and simple programming. The System series can also be administered using KeyWin Light, which logs and saves all events.

The key cabinets are available in various models with 16, 32 or 216 key hooks or, alternatively, with 6 smaller compartments. Can be expanded with up to 15 expansion cabinets.

Select a key cabinet

  • Alla
  • System
  • Expansion

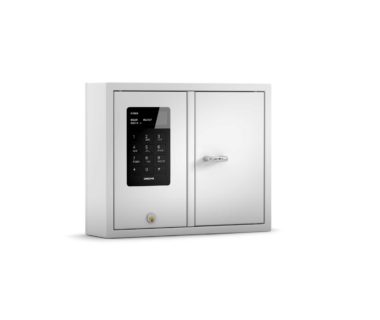

9001 S

Key cabinet in the System series with 1 door and 29 key hooks.

9001 S

User-friendly key cabinet with 1 door, 32 key hooks and smart log function. The key cabinet’s simple menu selection gives a good overview and user codes can be programmed at the touch of a button. The System series can be administered with the KeyWin Light software for better control of user codes and reading the event log.

All of the systems are flexible and can be expanded by up to 15 cabinets in any combination from the Expansion series.

Specifications
– Number of doors: 1
– Number of key hooks: 32
– Ext. dimensions (HxWxD): 280 x 350 x 85 mm
– Opening dimensions door (HxWxD): 245 x 110 x 60 mm
– Int. dimensions, storage compartment (HxWxD): 275 x 145 x 60 mm
– Weight: 6 kg
– Material: 1.5 mm galvanised steel
– Power: 230V
– Battery backup: Optional extras
– Network connection: No

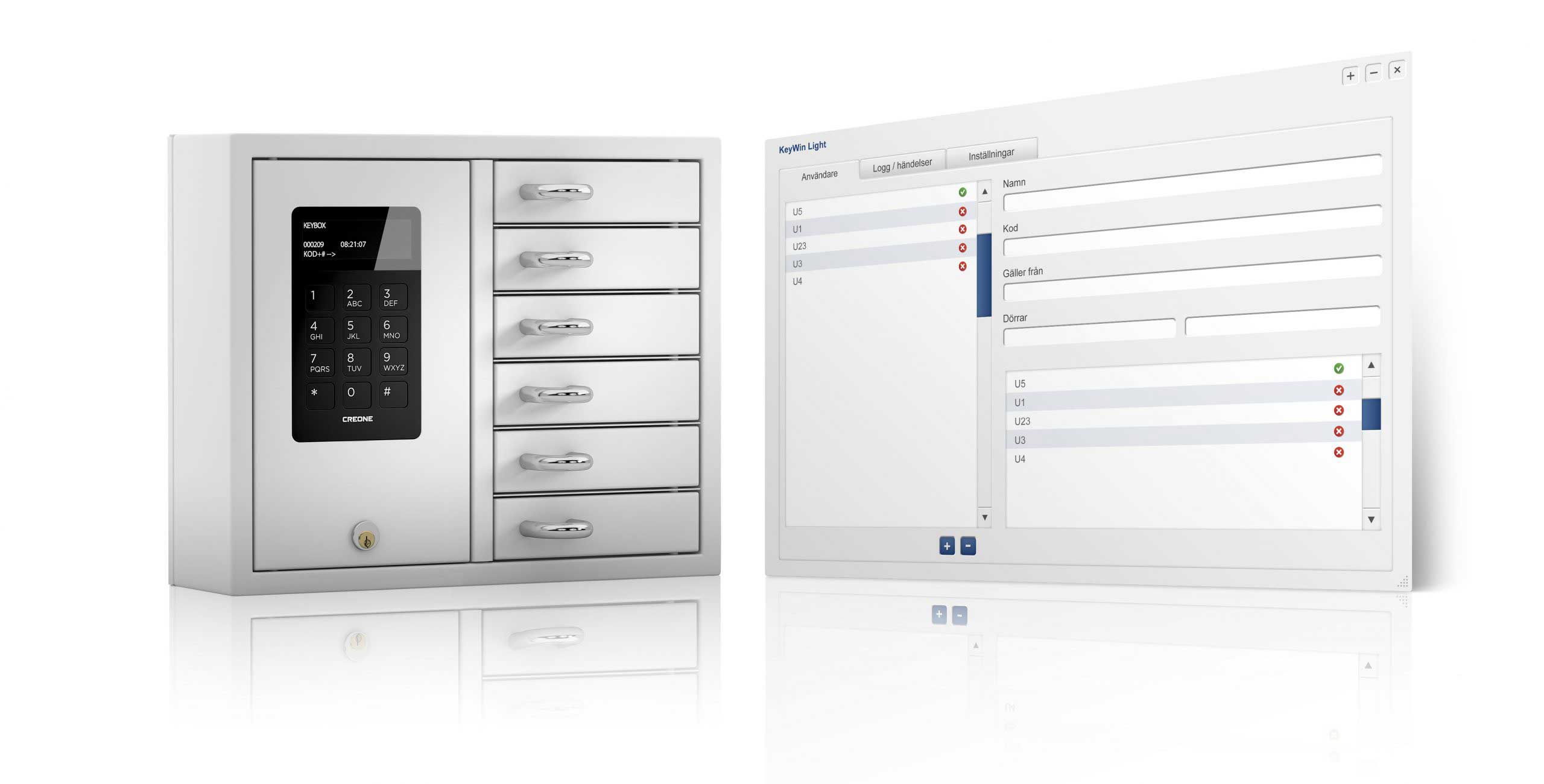

– Software: KeyWin Light
– Connect to external unit: Yes
– Installation: Walls

Optional extras
KeyWin Light software
– Battery backup
– Alarm contacts
– Addition for façade installation (only when recessed in wall)

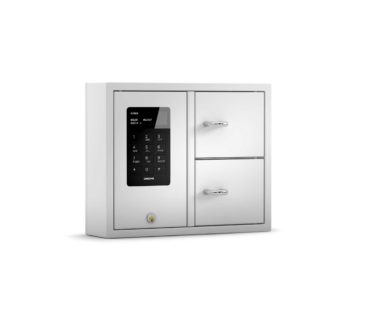

9002 S

Key cabinet in the System series with 2 doors and 16 key hooks.

9002 S

User-friendly key cabinet with 2 doors, 8 key hooks in each door and smart log function. The key cabinet’s simple menu selection gives a good overview and user codes can be programmed at the touch of a button. The System series can be administered with the KeyWin Light software for better control of user codes and reading the event log.

All of the systems are flexible and can be expanded by up to 15 cabinets in any combination from the Expansion series.

Specifications
– Number of doors: 2
– Number of key hooks: 16
– Ext. dimensions (HxWxD): 280 x 350 x 85 mm
– Opening dimensions door (HxWxD): 120 x 110 x 60 mm
– Int. dimensions, storage compartment (HxWxD): 135 x 145 x 60 mm
– Weight: 6 kg
– Material: 1.5 mm galvanised steel
– Power: 230V
– Battery backup: Optional extras
– Network connection: No
– Software: KeyWin Light
– Connect to external unit: Yes
– Installation: Walls

Optional extras
KeyWin Light software
– Battery backup
– Alarm contacts
– Addition for façade installation (only when recessed in wall)

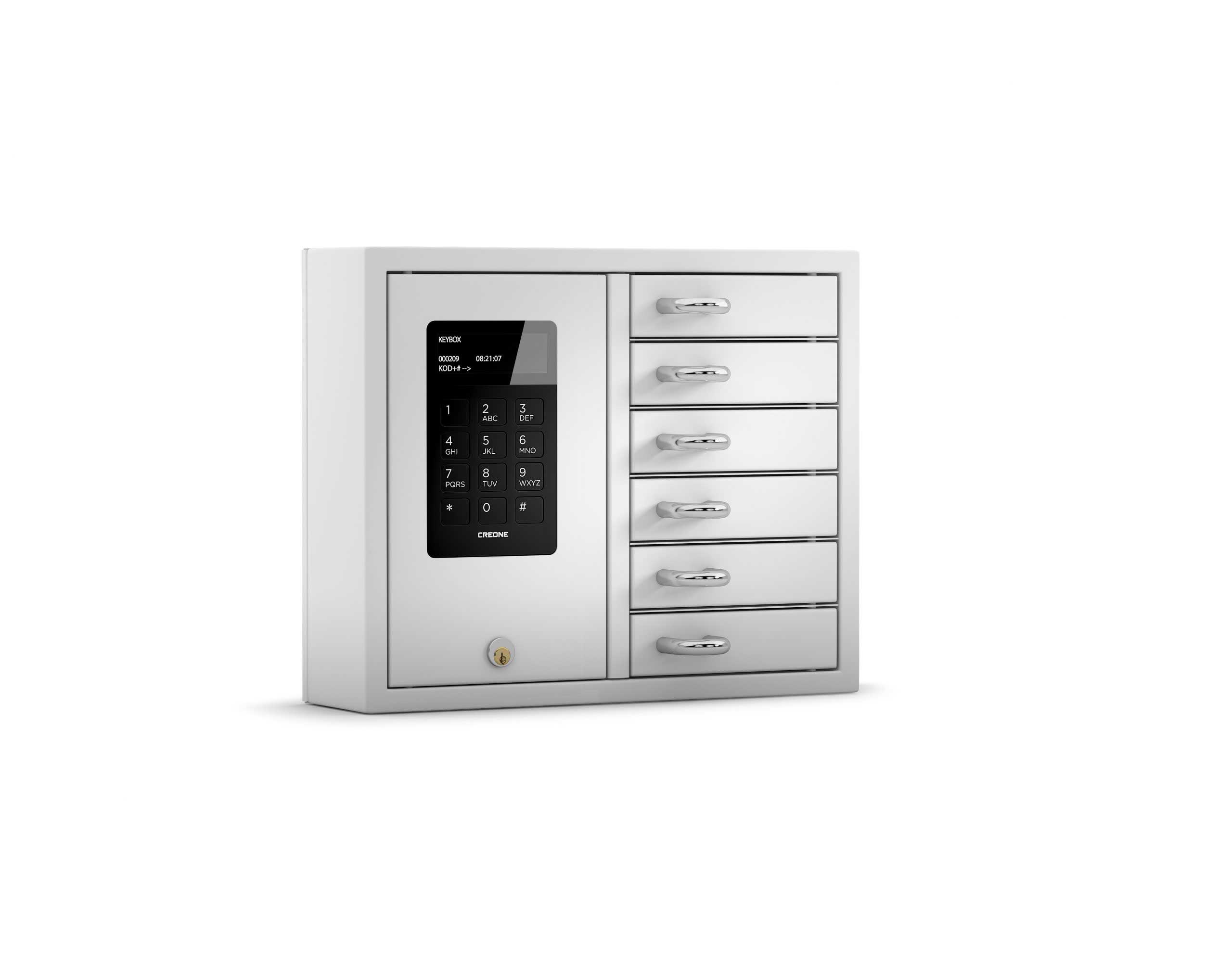

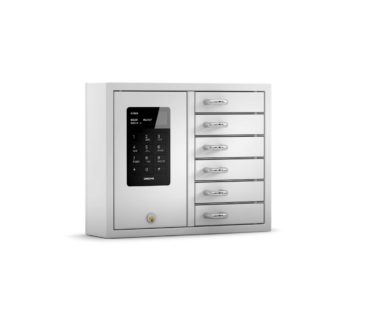

9006 S

Key cabinet in the System series with 6 smaller compartments.

9006 S

User-friendly key cabinet with 6 storage compartments and smart log function. The key cabinet’s simple menu selection gives a good overview and user codes can be programmed at the touch of a button. The System series can be administered with the KeyWin Light software for better control of user codes and reading the event log.

All of the systems are flexible and can be expanded by up to 15 cabinets in any combination from the Expansion series.

Specifications
– Number of doors: 6
– Number of key hooks:
– Ext. dimensions (HxWxD): 280 x 350 x 85 mm
– Opening dimensions door (HxWxD): 40 x 110 x 60 mm
– Int. dimensions, storage compartment (HxWxD): 40 x 145 x 60 mm
– Weight: 6 kg
– Material: 1.5 mm galvanised steel
– Power: 230V
– Battery backup: Optional extras
– Network connection: No
– Software: KeyWin Light
– Connect to external unit: Yes
– Installation: Walls

Optional extras
KeyWin Light software
– Battery backup
– Alarm contacts
– Addition for façade installation (only when recessed in wall)

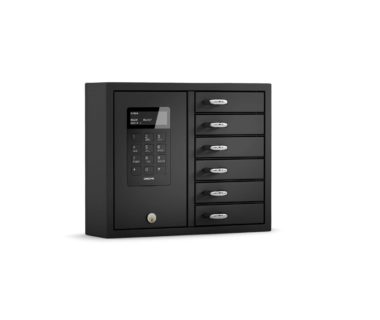

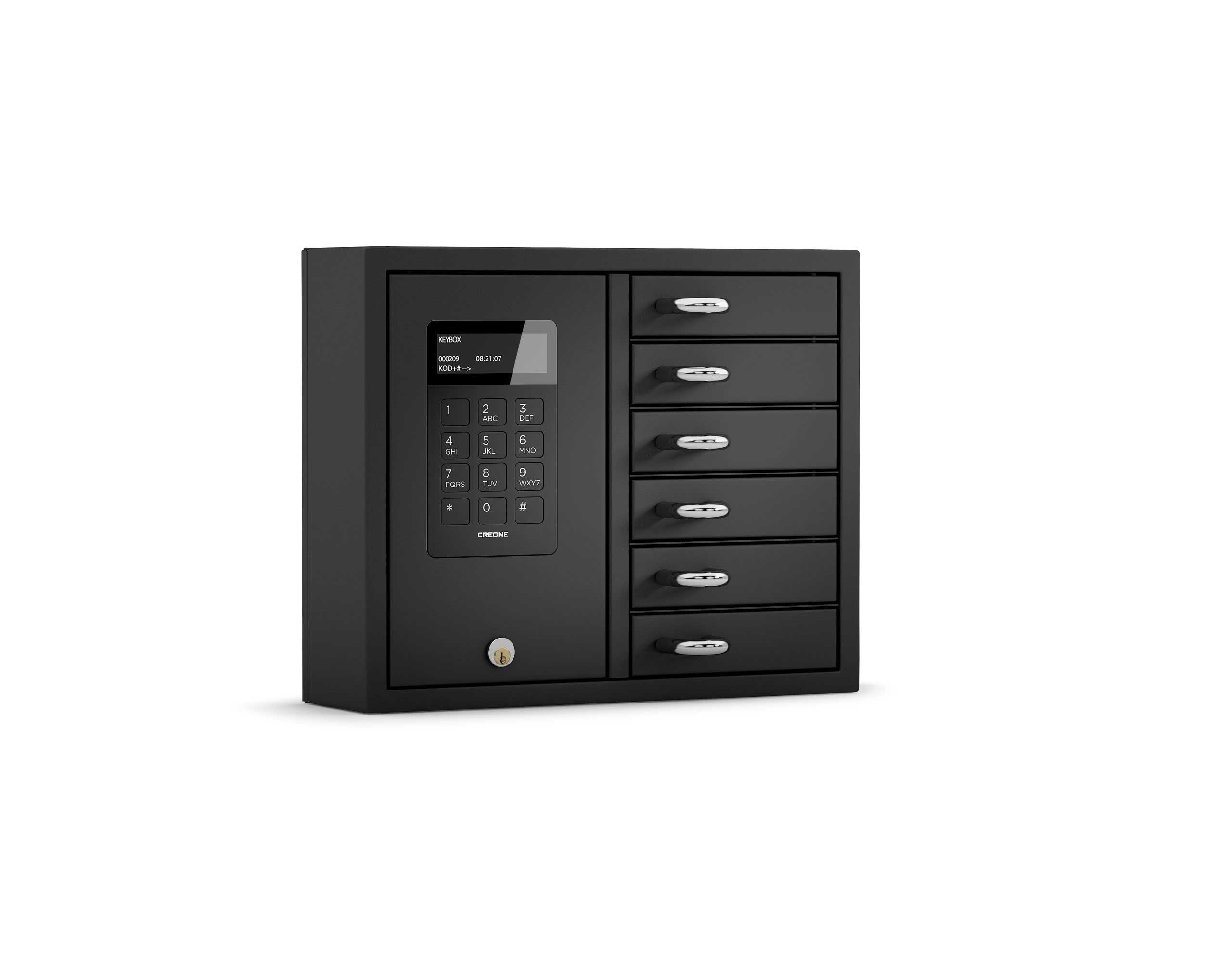

9006 S Stainless steel

Stainless steel cabinet in the System series with 6 small compartments.

9006 S Stainless steel

User-friendly stainless key cabinet with 6 storage compartments and smart log function. The key cabinet’s simple menu selection gives a good overview and user codes can be programmed at the touch of a button. The System series can be administered with the KeyWin Light software for better control of user codes and reading the event log.

All of the systems are flexible and can be expanded by up to 15 cabinets in any combination from the Expansion series.

Specifications
– Number of doors: 6
– Number of key hooks:
– Ext. dimensions (HxWxD): 280 x 350 x 85 mm
– Opening dimensions door (HxWxD): 40 x 110 x 60 mm
– Int. dimensions, storage compartment (HxWxD): 40 x 145 x 60 mm
– Weight: 6 kg
– Material: 1.5 mm stainless steel
– Power: 230V
– Battery backup: Optional extras
– Network connection: No
– Software: KeyWin Light
– Connect to external unit: Yes
– Installation: Walls

Optional extras
KeyWin Light software
– Battery backup
– Alarm contacts
– Addition for façade installation (only when recessed in wall)

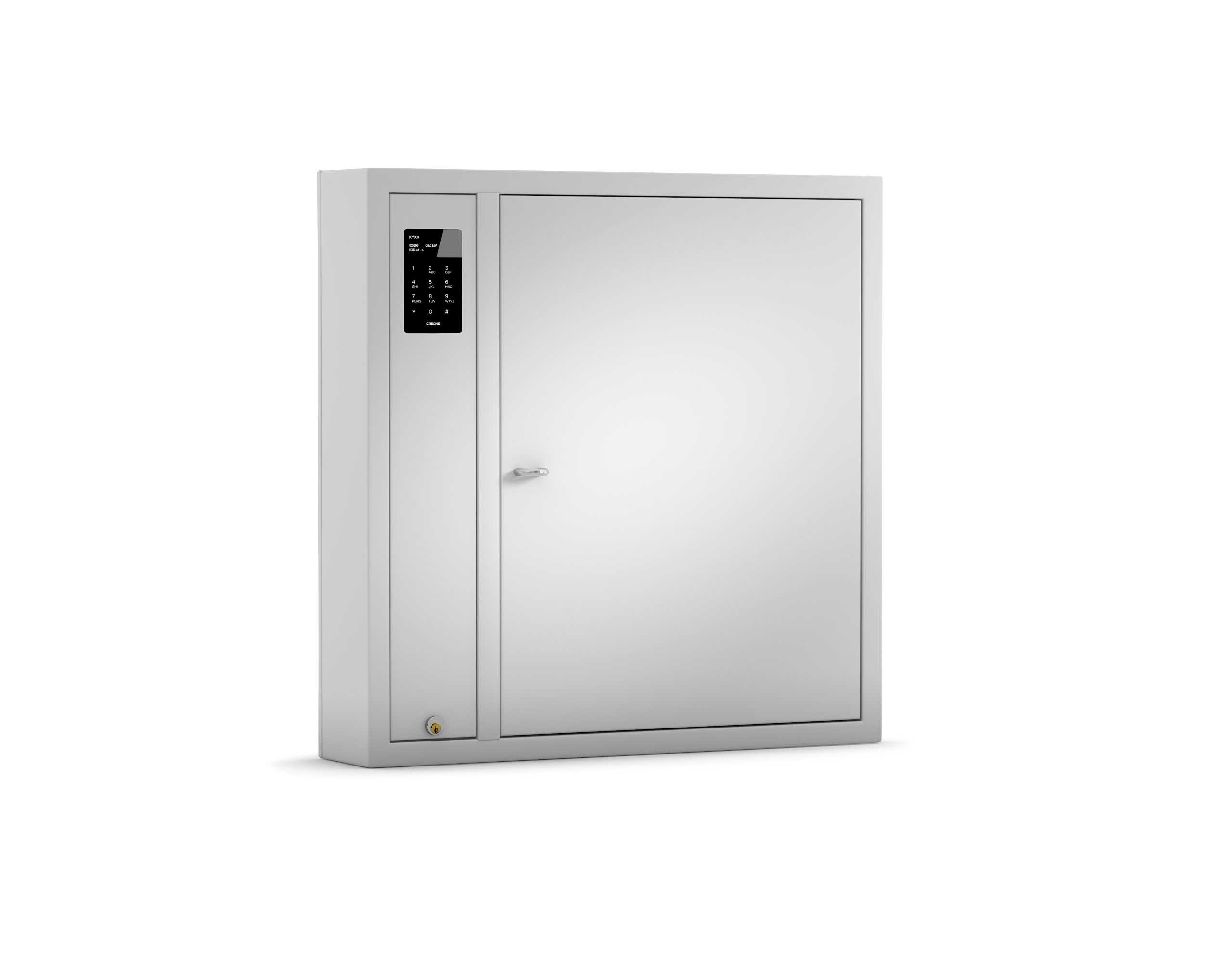

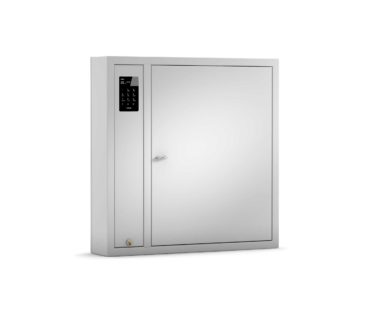

9500 S

Key cabinet in the System series with one door and 216 key hooks.

9500 S

User-friendly key cabinet with 1 door, 216 key hooks and smart log function. The key cabinet’s simple menu selection gives a good overview and user codes can be programmed at the touch of a button. The System series can be administered with the KeyWin Light software for better control of user codes and reading the event log.

All of the systems are flexible and can be expanded by up to 15 cabinets in any combination from the Expansion series.

Specifications
– Number of doors: 1
– Number of key hooks: 216
– Ext. dimensions (HxWxD): 730 x 746 x 140 mm
– Opening dimensions door (HxWxD): 665 x 480 x 120 mm
– Int. dimensions, storage compartment (HxWxD): 720 x 540 x 120 mm
– Weight: 28 kg
– Material: 1.5 mm galvanised steel
– Power: 230V
– Battery backup: Optional extras
– Network connection: No
– Software: KeyWin Light
– Connect to external unit: Yes
– Installation: Walls

Optional extras
KeyWin Light software
– Battery backup
– Alarm contacts

9001 E

Key cabinet in the Expansion series with 1 door and 29 key hooks.

9001 E

Expansion cabinet with 1 door and 32 key hooks for the expansion of key positions, for key cabinets in the Basic and System series. Controlled and programmed by the main cabinets in each series and a maximum of 15 expansion cabinets can be connected.

Specifications
– Number of doors: 1
– Number of key hooks: 32
– Ext. dimensions (HxWxD): 280 x 350 x 85 mm
– Opening dimensions door (HxWxD): 245 x 110 x 60 mm
– Int. dimensions, storage compartment (HxWxD): 275 x 145 x 60 mm
– Weight: 4 kg
– Material: 1.5 mm galvanised steel
– Installation: Walls

Optional extras
– Alarm contacts
– Addition for façade installation (only when recessed in wall)

9002 E

Key cabinet in the Expansion series with 2 doors and 16 key hooks.

9002 E

Expansion cabinet with 2 doors and 8 key hooks for the expansion of key positions, for key cabinets in the Basic and System series. Controlled and programmed by the main cabinets in each series and a maximum of 15 expansion cabinets can be connected.

Specifications
– Number of doors: 2
– Number of key hooks: 16
– Ext. dimensions (HxWxD): 280 x 350 x 85 mm
– Opening dimensions door (HxWxD): 120 x 110 x 60 mm
– Int. dimensions, storage compartment (HxWxD): 135 x 145 x 60 mm
– Weight: 4 kg
– Material: 1.5 mm galvanised steel
– Installation: Walls

Optional extras
– Alarm contacts
– Addition for façade installation (only when recessed in wall)

9006 E

Key cabinet in the Expansion series with 6 smaller compartments.

9006 E

Expansion cabinet with 6 compartments for storage and the expansion of key positions, for key cabinets in the Basic and System series. Controlled and programmed by the main cabinets in each series and a maximum of 15 expansion cabinets can be connected.

Specifications
– Number of doors: 6
– Number of key hooks:
– Ext. dimensions (HxWxD): 280 x 350 x 85 mm
– Opening dimensions door (HxWxD): 40 x 110 x 60 mm
– Int. dimensions, storage compartment (HxWxD): 40 x 145 x 60 mm
– Weight: 4 kg
– Material: 1.5 mm galvanised steel
– Installation: Walls

Optional extras
– Alarm contacts
– Addition for façade installation (only when recessed in wall)

9006 E Stainless steel

Key cabinet in the Expansion series with 6 smaller compartments.

9006 E Stainless steel

Expansion cabinet with 6 compartments for storage and the expansion of key positions, for key cabinets in the Basic and System series. Controlled and programmed by the main cabinets in each series and a maximum of 15 expansion cabinets can be connected.

Specifications
– Number of doors: 6
– Number of key hooks:
– Ext. dimensions (HxWxD): 280 x 350 x 85 mm
– Opening dimensions door (HxWxD): 40 x 110 x 60 mm
– Int. dimensions, storage compartment (HxWxD): 40 x 145 x 60 mm
– Weight: 4 kg
– Material: 1.5 mm stainless steel
– Installation: Walls

Optional extras
– Alarm contacts
– Addition for façade installation (only when recessed in wall)

9500E

Key cabinet in the Expansion series with 1 door and 216 key hooks.

9500E

Expansion cabinet with 1 door and 216 key hooks for the expansion of key positions, for key cabinets in the Basic and System series. Controlled and programmed by the main cabinets in each series and a maximum of 15 expansion cabinets can be connected.

Specifications
– Number of doors: 1
– Number of key hooks: 216
– Ext. dimensions (HxWxD): 730 x 746 x 140 mm
– Opening dimensions door (HxWxD): 665 x 480 x 120 mm
– Int. dimensions, storage compartment (HxWxD): 720 x 540 x 120 mm
– Weight: 28 kg
– Material: 1.5 mm galvanised steel
– Installation: Walls

Optional extras
– Alarm contacts

9001 S

Key cabinet in the System series with 1 door and 29 key hooks.

9001 S

User-friendly key cabinet with 1 door, 32 key hooks and smart log function. The key cabinet’s simple menu selection gives a good overview and user codes can be programmed at the touch of a button. The System series can be administered with the KeyWin Light software for better control of user codes and reading the event log.

All of the systems are flexible and can be expanded by up to 15 cabinets in any combination from the Expansion series.

Specifications
– Number of doors: 1
– Number of key hooks: 32
– Ext. dimensions (HxWxD): 280 x 350 x 85 mm
– Opening dimensions door (HxWxD): 245 x 110 x 60 mm
– Int. dimensions, storage compartment (HxWxD): 275 x 145 x 60 mm
– Weight: 6 kg
– Material: 1.5 mm galvanised steel
– Power: 230V
– Battery backup: Optional extras
– Network connection: No
– Software: KeyWin Light
– Connect to external unit: Yes
– Installation: Walls

Optional extras
KeyWin Light software
– Battery backup
– Alarm contacts
– Addition for façade installation (only when recessed in wall)

9002 S

Key cabinet in the System series with 2 doors and 16 key hooks.

9002 S

User-friendly key cabinet with 2 doors, 8 key hooks in each door and smart log function. The key cabinet’s simple menu selection gives a good overview and user codes can be programmed at the touch of a button. The System series can be administered with the KeyWin Light software for better control of user codes and reading the event log.

All of the systems are flexible and can be expanded by up to 15 cabinets in any combination from the Expansion series.

Specifications
– Number of doors: 2
– Number of key hooks: 16
– Ext. dimensions (HxWxD): 280 x 350 x 85 mm
– Opening dimensions door (HxWxD): 120 x 110 x 60 mm
– Int. dimensions, storage compartment (HxWxD): 135 x 145 x 60 mm
– Weight: 6 kg
– Material: 1.5 mm galvanised steel
– Power: 230V
– Battery backup: Optional extras
– Network connection: No
– Software: KeyWin Light
– Connect to external unit: Yes
– Installation: Walls

Optional extras
KeyWin Light software
– Battery backup
– Alarm contacts
– Addition for façade installation (only when recessed in wall)

9006 S

Key cabinet in the System series with 6 smaller compartments.

9006 S

User-friendly key cabinet with 6 storage compartments and smart log function. The key cabinet’s simple menu selection gives a good overview and user codes can be programmed at the touch of a button. The System series can be administered with the KeyWin Light software for better control of user codes and reading the event log.

All of the systems are flexible and can be expanded by up to 15 cabinets in any combination from the Expansion series.

Specifications
– Number of doors: 6
– Number of key hooks:
– Ext. dimensions (HxWxD): 280 x 350 x 85 mm
– Opening dimensions door (HxWxD): 40 x 110 x 60 mm
– Int. dimensions, storage compartment (HxWxD): 40 x 145 x 60 mm
– Weight: 6 kg
– Material: 1.5 mm galvanised steel
– Power: 230V
– Battery backup: Optional extras
– Network connection: No
– Software: KeyWin Light
– Connect to external unit: Yes
– Installation: Walls

Optional extras
KeyWin Light software
– Battery backup
– Alarm contacts
– Addition for façade installation (only when recessed in wall)

9006 S Stainless steel

Stainless steel cabinet in the System series with 6 small compartments.

9006 S Stainless steel

User-friendly stainless key cabinet with 6 storage compartments and smart log function. The key cabinet’s simple menu selection gives a good overview and user codes can be programmed at the touch of a button. The System series can be administered with the KeyWin Light software for better control of user codes and reading the event log.

All of the systems are flexible and can be expanded by up to 15 cabinets in any combination from the Expansion series.

Specifications
– Number of doors: 6
– Number of key hooks:
– Ext. dimensions (HxWxD): 280 x 350 x 85 mm
– Opening dimensions door (HxWxD): 40 x 110 x 60 mm
– Int. dimensions, storage compartment (HxWxD): 40 x 145 x 60 mm
– Weight: 6 kg
– Material: 1.5 mm stainless steel
– Power: 230V
– Battery backup: Optional extras
– Network connection: No
– Software: KeyWin Light
– Connect to external unit: Yes
– Installation: Walls

Optional extras
KeyWin Light software
– Battery backup
– Alarm contacts
– Addition for façade installation (only when recessed in wall)

9500 S

Key cabinet in the System series with one door and 216 key hooks.

9500 S

User-friendly key cabinet with 1 door, 216 key hooks and smart log function. The key cabinet’s simple menu selection gives a good overview and user codes can be programmed at the touch of a button. The System series can be administered with the KeyWin Light software for better control of user codes and reading the event log.

All of the systems are flexible and can be expanded by up to 15 cabinets in any combination from the Expansion series.

Specifications
– Number of doors: 1
– Number of key hooks: 216
– Ext. dimensions (HxWxD): 730 x 746 x 140 mm
– Opening dimensions door (HxWxD): 665 x 480 x 120 mm
– Int. dimensions, storage compartment (HxWxD): 720 x 540 x 120 mm
– Weight: 28 kg
– Material: 1.5 mm galvanised steel
– Power: 230V
– Battery backup: Optional extras
– Network connection: No
– Software: KeyWin Light
– Connect to external unit: Yes
– Installation: Walls

Optional extras
KeyWin Light software
– Battery backup
– Alarm contacts

9001 E

Key cabinet in the Expansion series with 1 door and 29 key hooks.

9001 E

Expansion cabinet with 1 door and 32 key hooks for the expansion of key positions, for key cabinets in the Basic and System series. Controlled and programmed by the main cabinets in each series and a maximum of 15 expansion cabinets can be connected.

Specifications
– Number of doors: 1
– Number of key hooks: 32
– Ext. dimensions (HxWxD): 280 x 350 x 85 mm
– Opening dimensions door (HxWxD): 245 x 110 x 60 mm
– Int. dimensions, storage compartment (HxWxD): 275 x 145 x 60 mm
– Weight: 4 kg
– Material: 1.5 mm galvanised steel
– Installation: Walls

Optional extras
– Alarm contacts
– Addition for façade installation (only when recessed in wall)

9002 E

Key cabinet in the Expansion series with 2 doors and 16 key hooks.

9002 E

Expansion cabinet with 2 doors and 8 key hooks for the expansion of key positions, for key cabinets in the Basic and System series. Controlled and programmed by the main cabinets in each series and a maximum of 15 expansion cabinets can be connected.

Specifications
– Number of doors: 2
– Number of key hooks: 16
– Ext. dimensions (HxWxD): 280 x 350 x 85 mm
– Opening dimensions door (HxWxD): 120 x 110 x 60 mm
– Int. dimensions, storage compartment (HxWxD): 135 x 145 x 60 mm
– Weight: 4 kg
– Material: 1.5 mm galvanised steel
– Installation: Walls

Optional extras
– Alarm contacts
– Addition for façade installation (only when recessed in wall)

9006 E

Key cabinet in the Expansion series with 6 smaller compartments.

9006 E

Expansion cabinet with 6 compartments for storage and the expansion of key positions, for key cabinets in the Basic and System series. Controlled and programmed by the main cabinets in each series and a maximum of 15 expansion cabinets can be connected.

Specifications
– Number of doors: 6
– Number of key hooks:
– Ext. dimensions (HxWxD): 280 x 350 x 85 mm
– Opening dimensions door (HxWxD): 40 x 110 x 60 mm
– Int. dimensions, storage compartment (HxWxD): 40 x 145 x 60 mm
– Weight: 4 kg
– Material: 1.5 mm galvanised steel
– Installation: Walls

Optional extras
– Alarm contacts
– Addition for façade installation (only when recessed in wall)

9006 E Stainless steel

Key cabinet in the Expansion series with 6 smaller compartments.

9006 E Stainless steel

Expansion cabinet with 6 compartments for storage and the expansion of key positions, for key cabinets in the Basic and System series. Controlled and programmed by the main cabinets in each series and a maximum of 15 expansion cabinets can be connected.

Specifications
– Number of doors: 6
– Number of key hooks:
– Ext. dimensions (HxWxD): 280 x 350 x 85 mm
– Opening dimensions door (HxWxD): 40 x 110 x 60 mm
– Int. dimensions, storage compartment (HxWxD): 40 x 145 x 60 mm
– Weight: 4 kg
– Material: 1.5 mm stainless steel
– Installation: Walls

Optional extras
– Alarm contacts
– Addition for façade installation (only when recessed in wall)

9500E

Key cabinet in the Expansion series with 1 door and 216 key hooks.

9500E

Expansion cabinet with 1 door and 216 key hooks for the expansion of key positions, for key cabinets in the Basic and System series. Controlled and programmed by the main cabinets in each series and a maximum of 15 expansion cabinets can be connected.

Specifications
– Number of doors: 1
– Number of key hooks: 216
– Ext. dimensions (HxWxD): 730 x 746 x 140 mm
– Opening dimensions door (HxWxD): 665 x 480 x 120 mm
– Int. dimensions, storage compartment (HxWxD): 720 x 540 x 120 mm
– Weight: 28 kg
– Material: 1.5 mm galvanised steel
– Installation: Walls

Optional extras
– Alarm contacts

Personal code with display for overview

The key cabinet is equipped with a keypad for programming and entering personal codes. A clear display provides an excellent overview and menu navigation. Activate alarms, see who has opened a specific compartment or view the history, all directly on the display. With battery backup, you never need to worry about access to the cabinet.

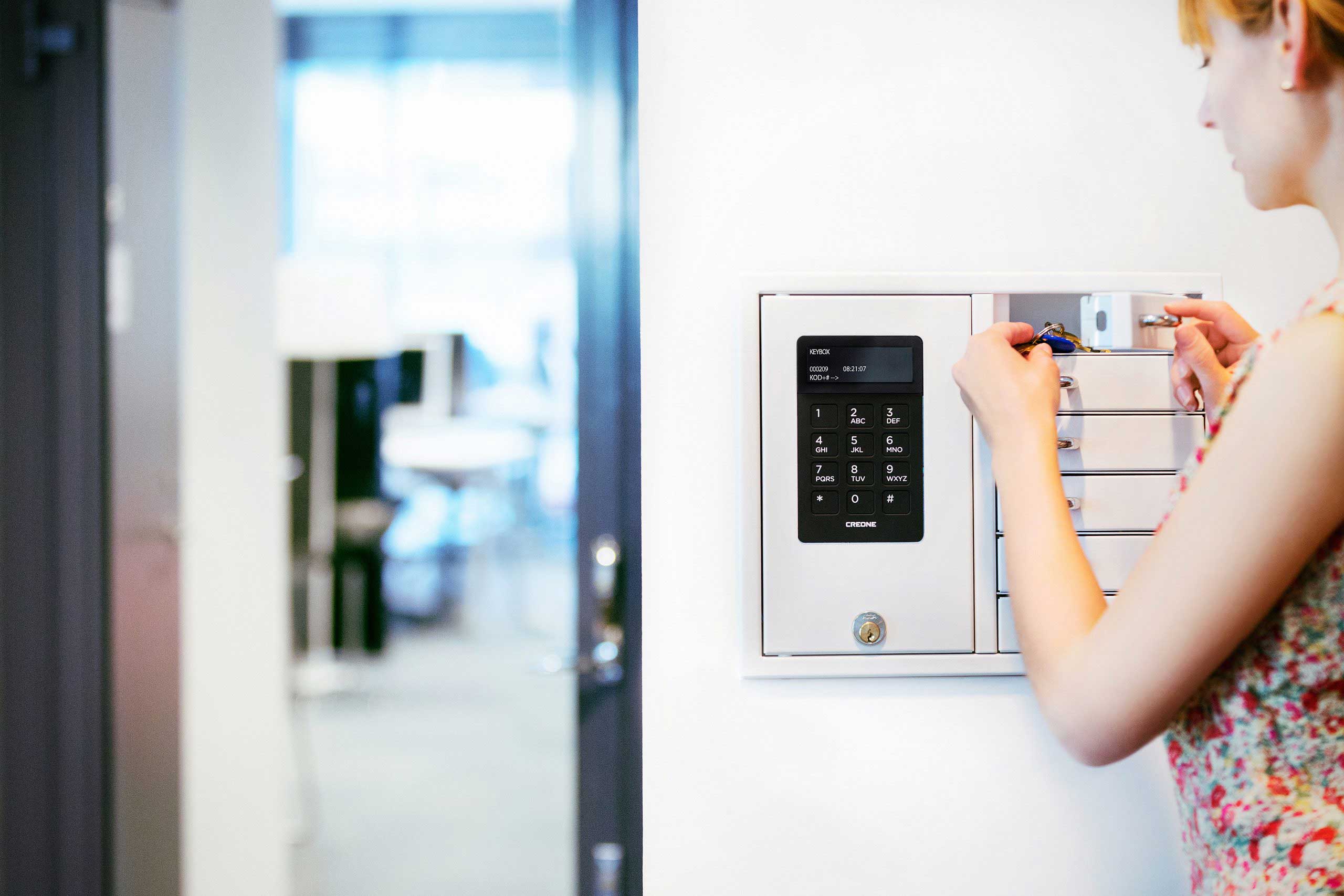

Key management with a key cabinet that has six compartments for key storage and key distribution

Simple administration

KeyWin Light is the PC software to increase the monitoring and control of key management. KeyWin Light is easy to use, with information transmitted via USB between the cabinet and a PC. All events are logged and saved in KeyWin Light. KeyWin Light is only used with the System series.

Discover
KeyBox key cabinet with program view of key management software KeyWin Light

Simple expansion

All key cabinets can be expanded by adding up to 15 Expansion cabinets in any combination, which means you can have 96 compartments in one key management system, all controlled via just the one keypad.

All the Expansion series distribution cabinets are designed for key management

Book a demo

Let us today show you the best possible way to manage your keys and store your things.

Book now

Find a retailer

Use the map or search bar to find a retailer. Get help with your existing system or with choosing the right solution.

Search now
