Keycontrol series

The Keycontrol series is the smartest KeyBox system with electronic key identification and management for tracking and control of each individual key. The key cabinets are administered via the KeyWin software which logs and saves all events.

The Keycontrol series is fully flexible and can easily be expanded to store anywhere from 14 to thousands of keys in just one key management system. In line with your growing needs, you can easily add more strips and key positions to your key cabinet or add more key cabinets to the same system.

Various models of the key cabinets are available, with a maximum of 42, 84, 210, 224 and 924 keys respectively in each cabinet.

Select a key cabinet

  • Alla
  • Standard cabinet
  • Security cabinet

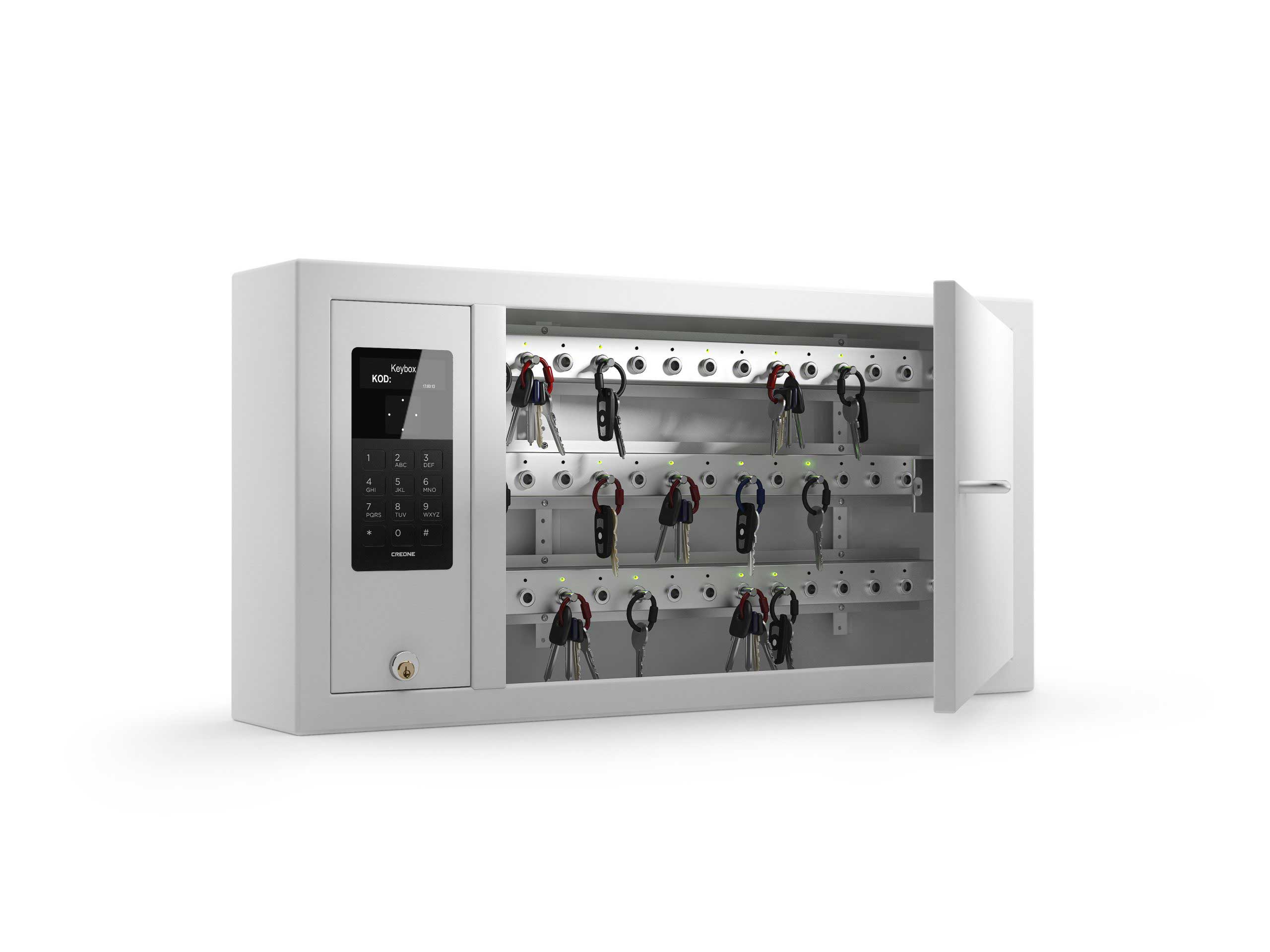

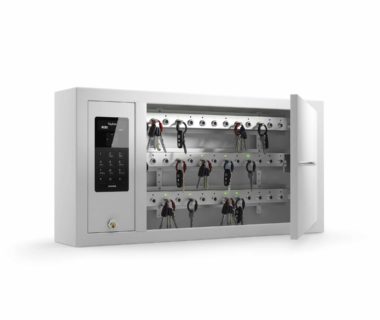

9400 SC

Keycontrol key cabinet with space for a maximum of 42 key positions.

9400 SC

Intelligent key cabinet in a compact format, with key identification to monitor and control each individual key. Holds a maximum of 42 key positions but can be equipped with fewer positions and expanded when business needs change. Individual login via PIN or select card reader when using RFID tags and cards for greater security.

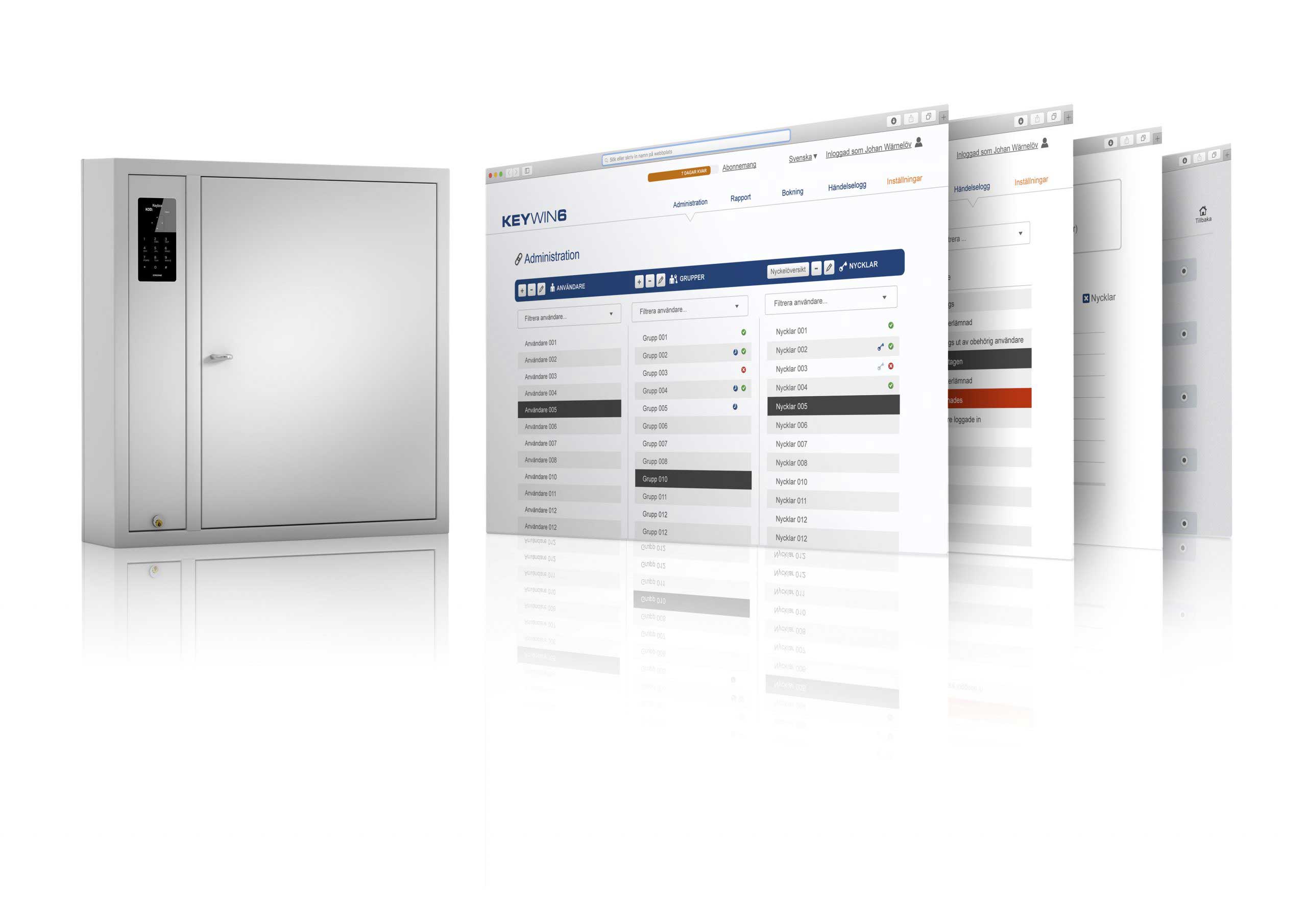

Key management is administered with the KeyWin cloud service, which means complete traceability of keys achieved using a functional and user-friendly interface.

Specifications
– Max number of positions: 42

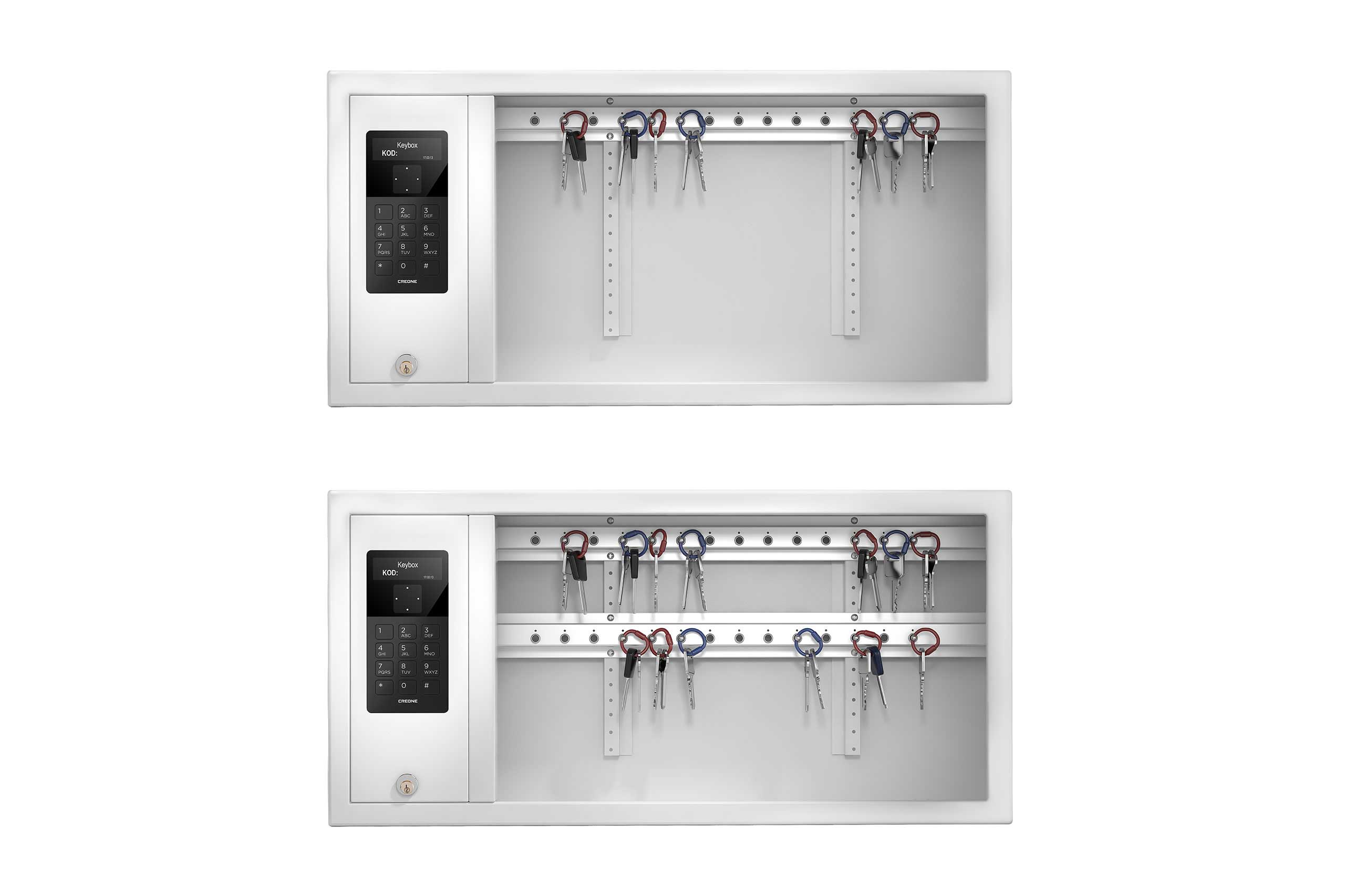

– Maximum number of key strips: 3
– Ext. dimensions (HxWxD): 730 x 746 x 140 mm
– Weight, fully equipped: 25 kg
– Material: 1.5 mm galvanised steel
– Power: 230V
– Battery backup: 12V, 1.2Ah
– Network connection: Yes
– Software: KeyWin6
– Installation: Walls

Accessories
– Card reader 13.56 mHz / 125 kHz
– Number plate
– Sealing cables

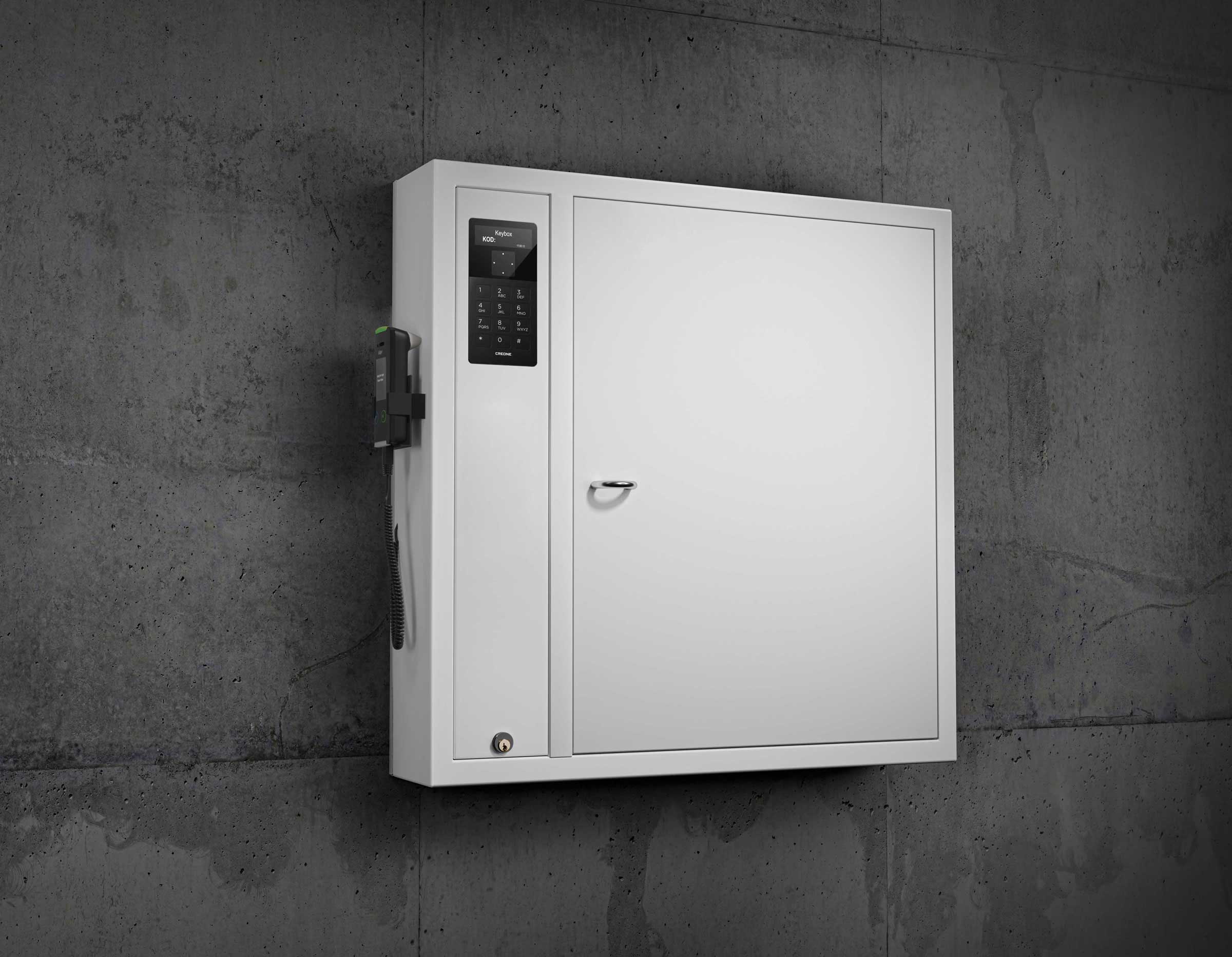

– Alcohol interlock

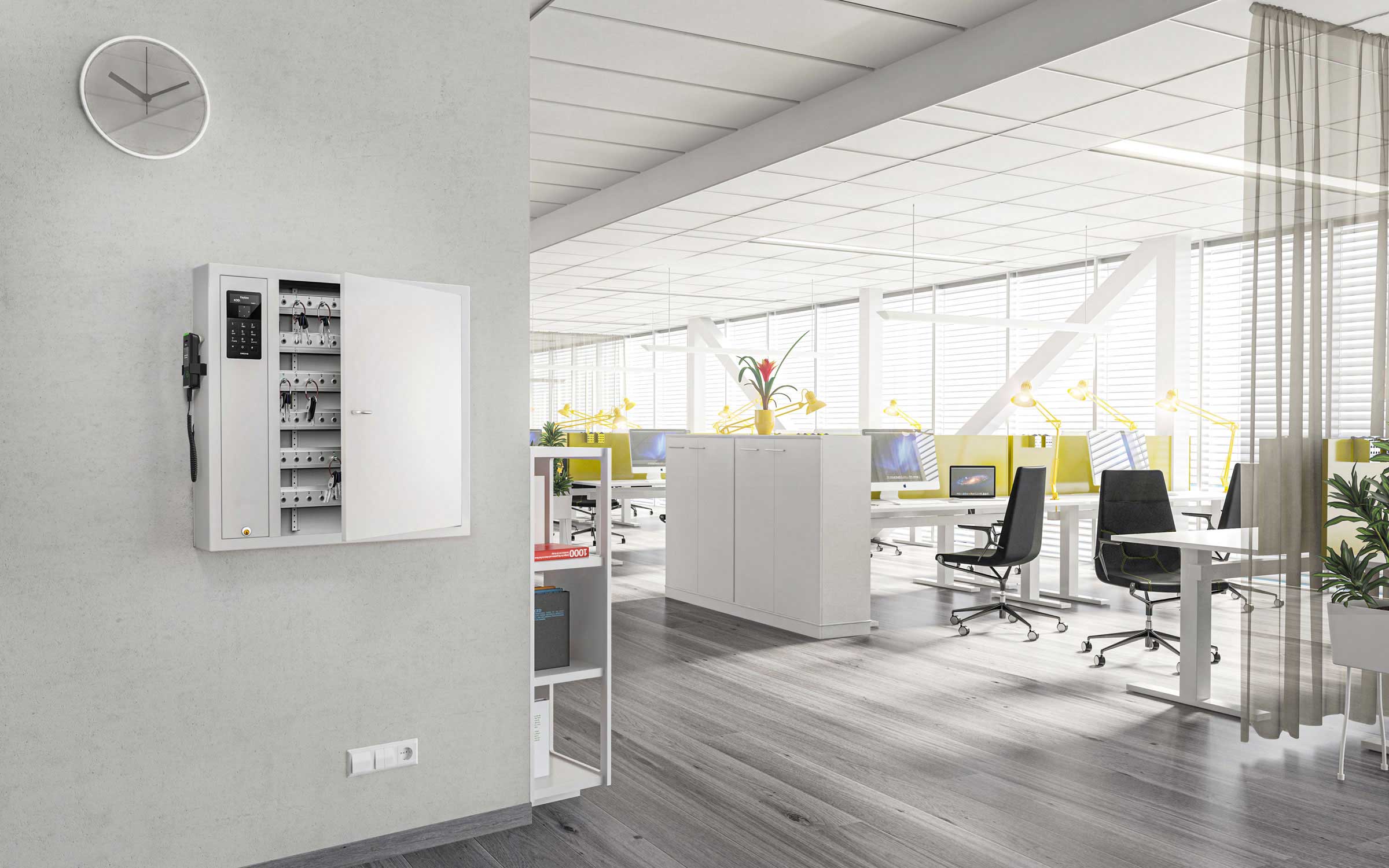

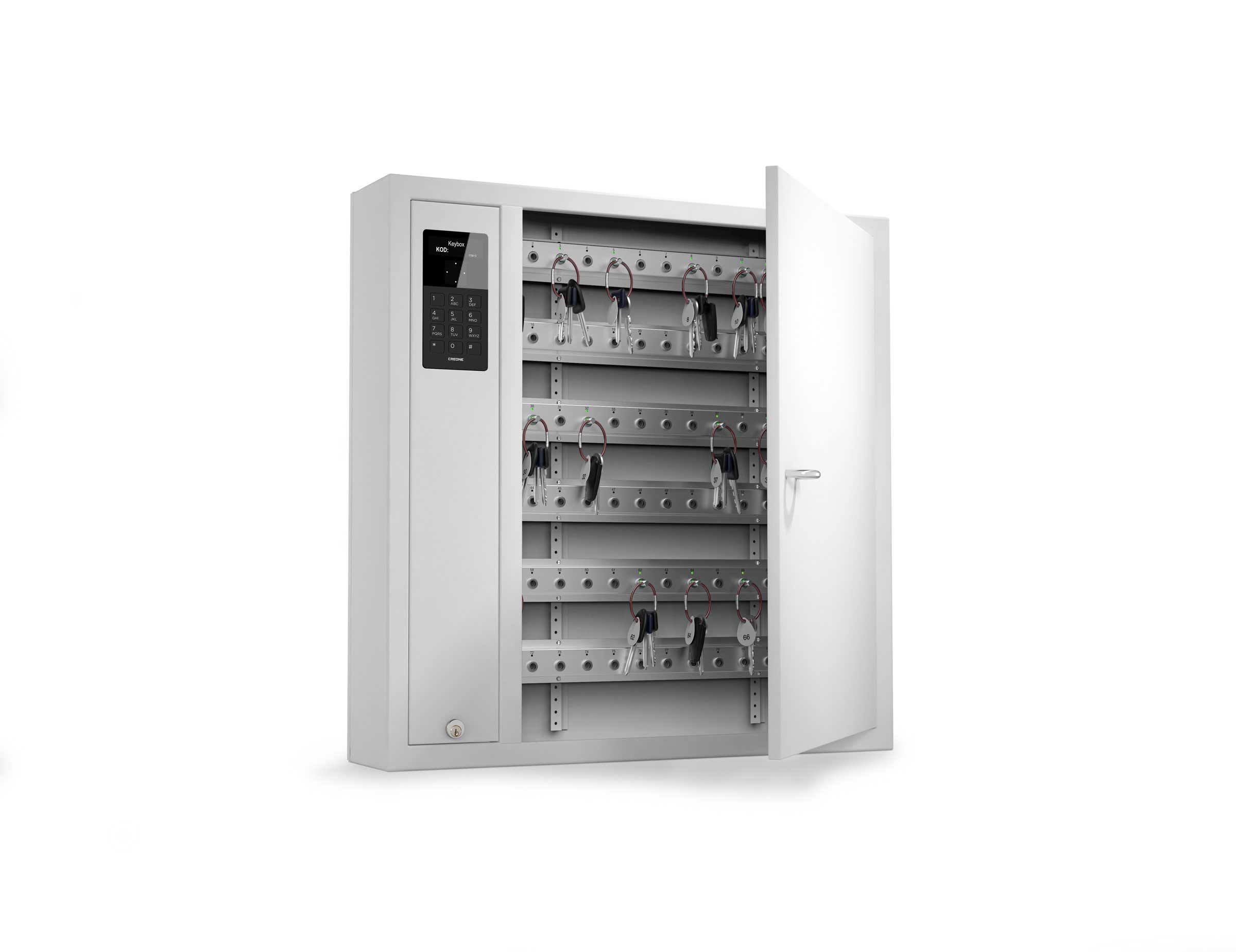

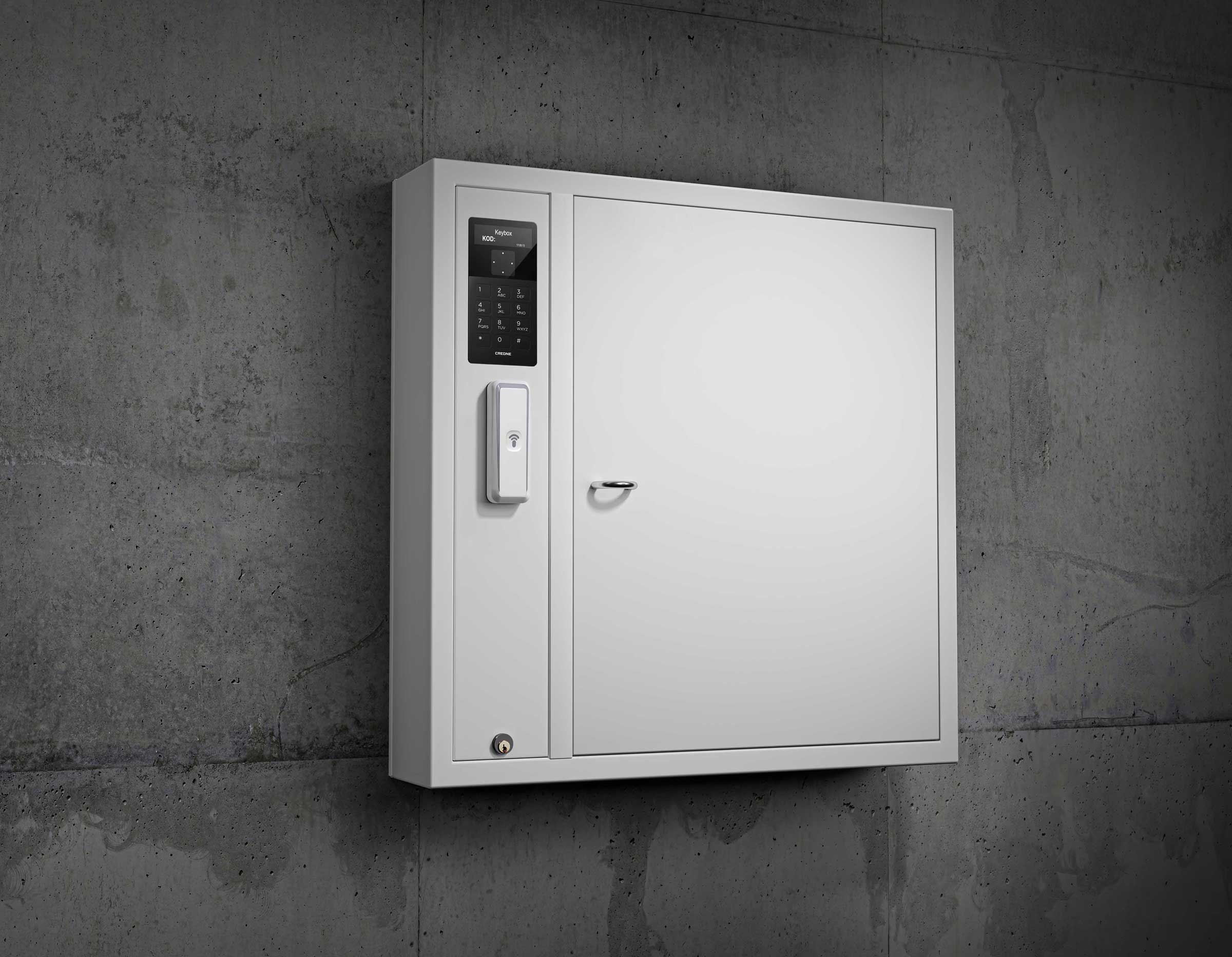

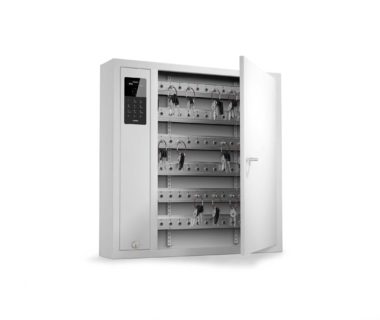

9500 SC

Keycontrol key cabinet with space for a maximum of 84 key positions.

9500 SC

Intelligent key cabinet with key identification to monitor and control each individual key. Holds a maximum of 84 key positions but can be equipped with fewer positions and expanded when business needs change. Possibility to expand capacity further by connecting additional expansion cabinets. Individual login via PIN or select card reader when using RFID tags and cards for greater security.

Key management is administered with the KeyWin cloud service, which means complete traceability of keys achieved using a functional and user-friendly interface.

Specifications
– Max number of positions: 84
– Maximum number of key strips: 6
– Ext. dimensions (HxWxD): 730 x 746 x 140 mm
– Weight, fully equipped: 30 kg
– Material: 1.5 mm galvanised steel
– Power: 230V
– Battery backup: 12V, 1.2Ah
– Network connection: Yes
– Software: KeyWin6
– Installation: Walls

Accessories
– Card reader 13.56 mHz / 125 kHz
– Number plate
– Sealing cables
– Alcohol interlock

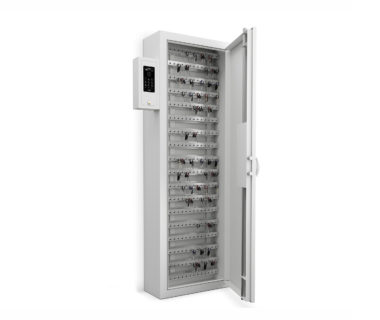

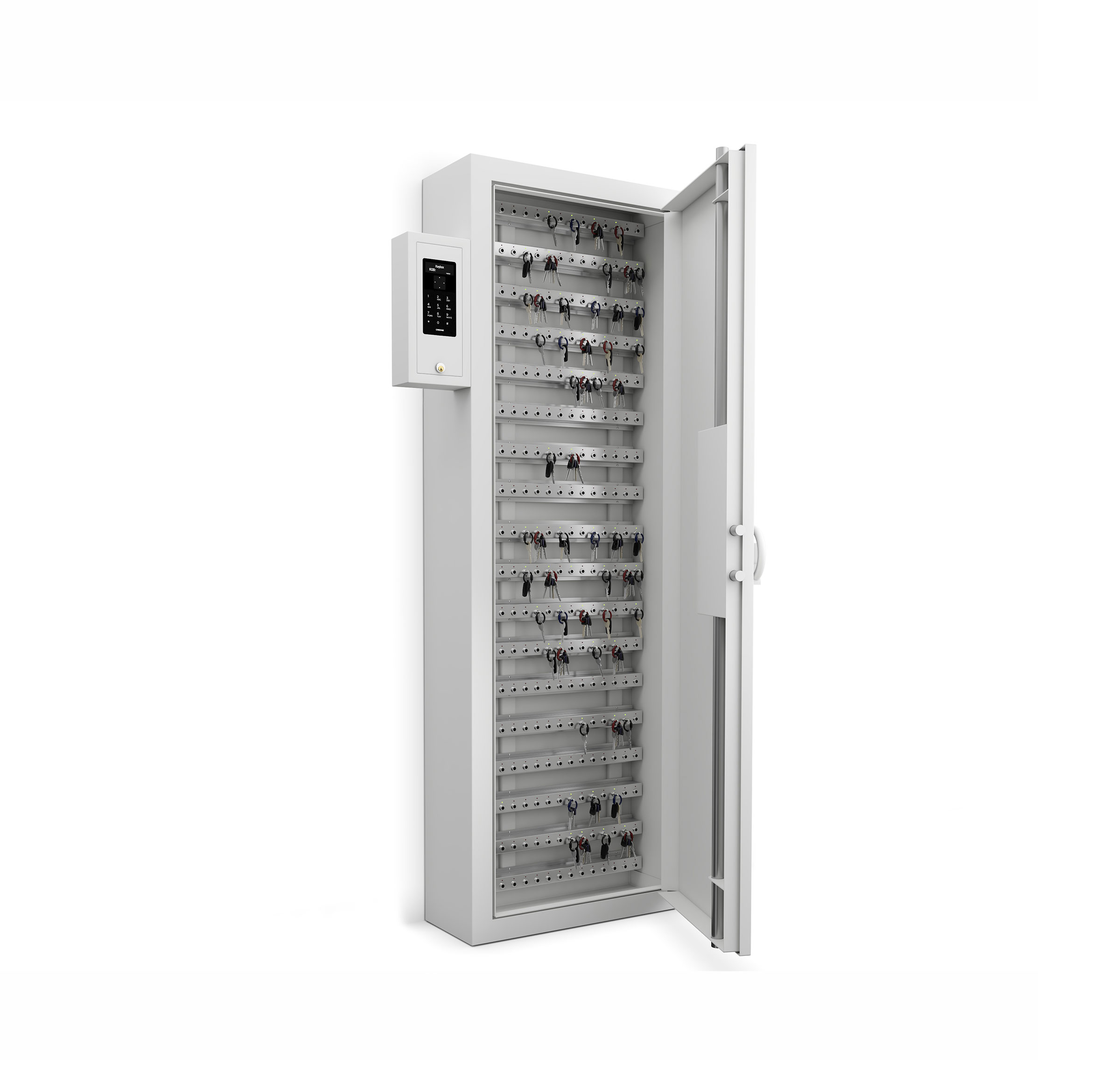

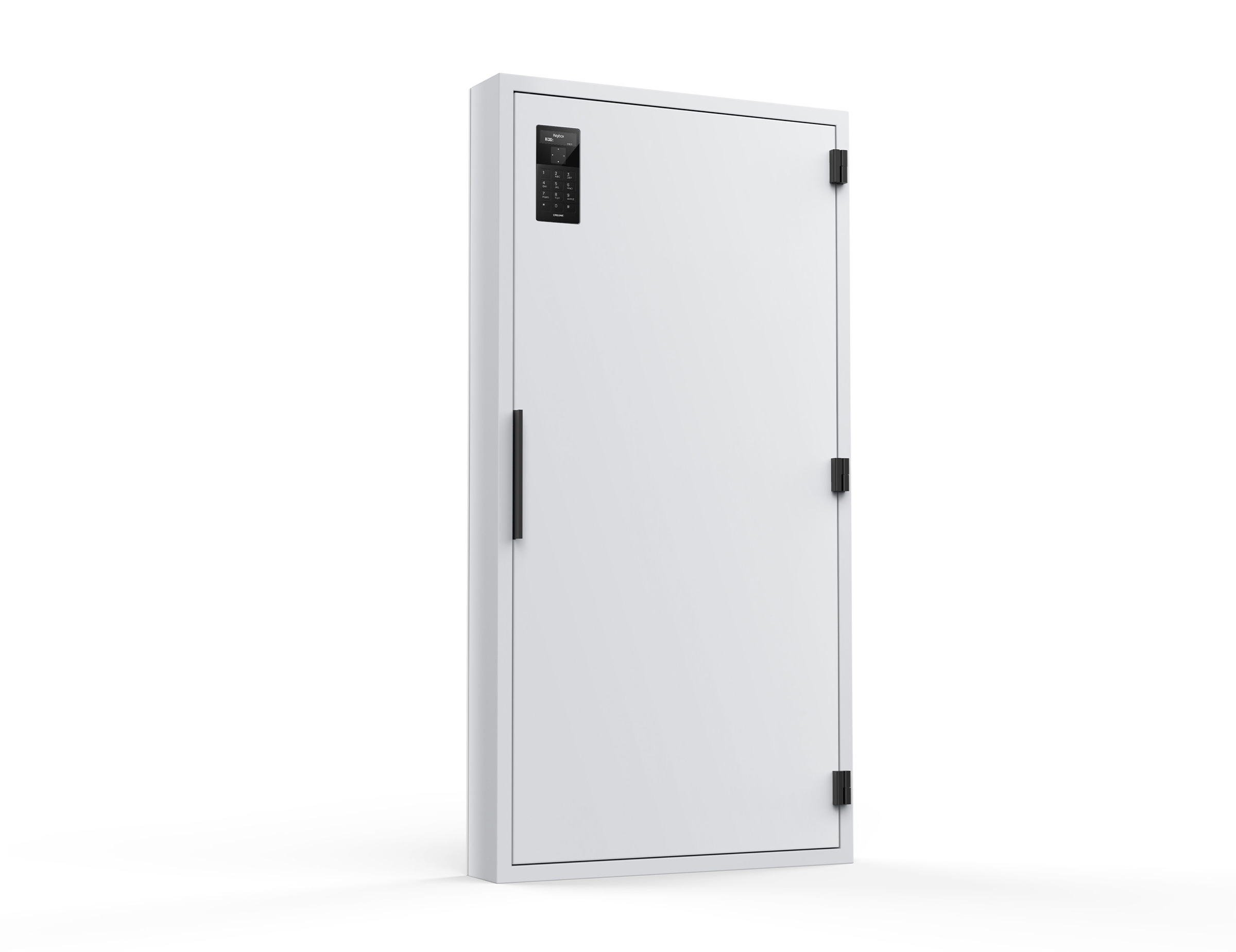

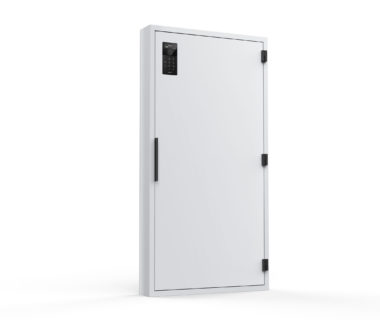

9550 SC

Keycontrol key cabinet with space for a maximum of 210 key positions.

9550 SC

Intelligent key cabinet with key identification to monitor and control each individual key. Holds a maximum of 210 key positions but can be equipped with fewer positions and expanded when business needs change. Possibility to expand capacity further by connecting additional expansion cabinets. Individual login via PIN or select card reader when using RFID tags and cards for greater security.

Key management is administered with the KeyWin cloud service, which means complete traceability of keys is achieved using a functional and user-friendly interface.

Specifications
– Max. number of positions: 210
– Max. number of key strips: 15
– External dimensions (hxwxd): 1460x746x140 mm
– Weight, fully equipped: 70 kg
– Material: 1.5 mm galvanised steel
– Electricity: 230V
– Battery backup: 12V, 7.2Ah
– Network connectivity: Yes
– Software: KeyWin6
– Installation: Wall

Accessories
– Card reader 13.56 mHz / 125 kHz
– Number plate
– Sealing cables
– Alcohol interlock

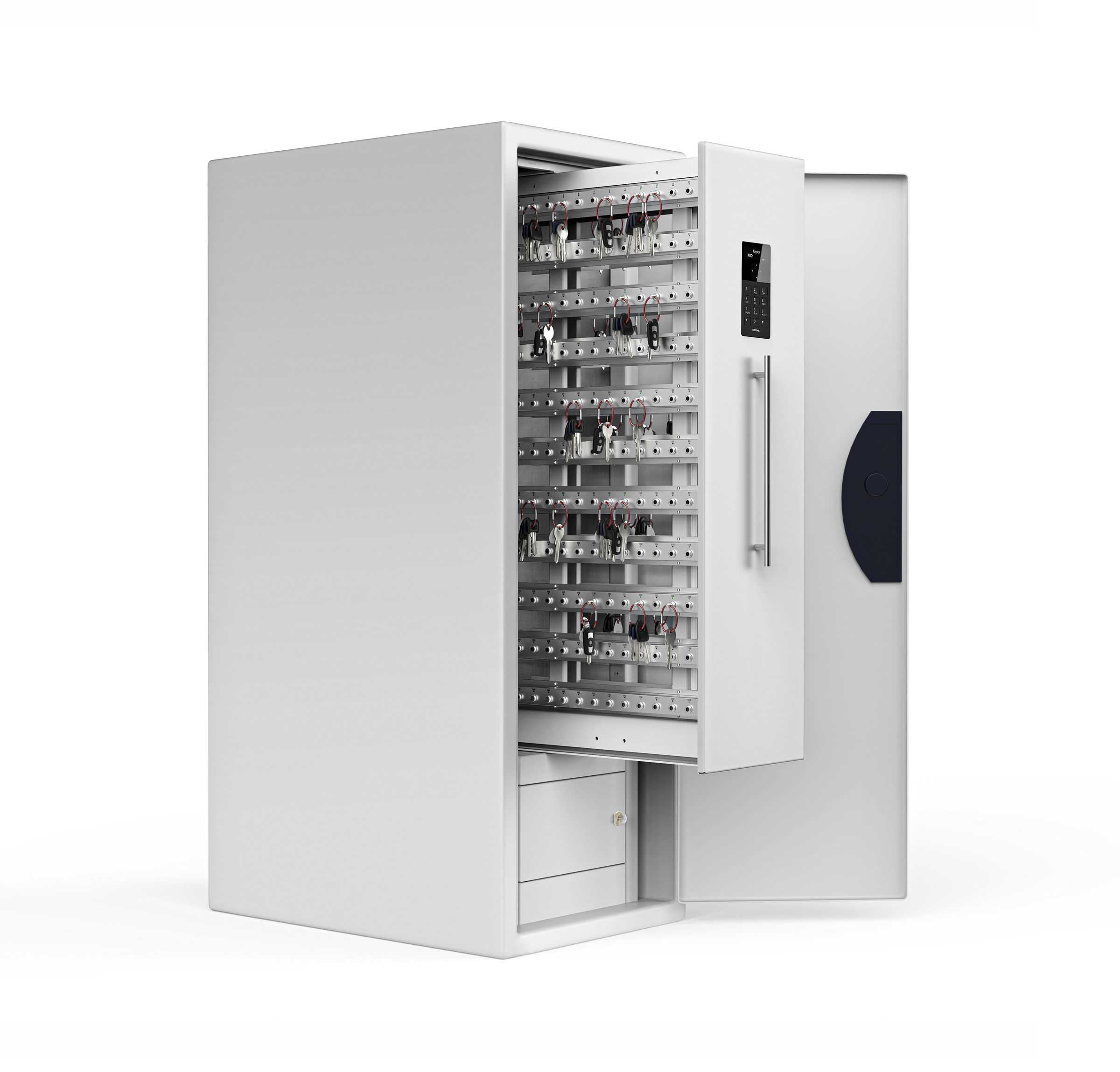

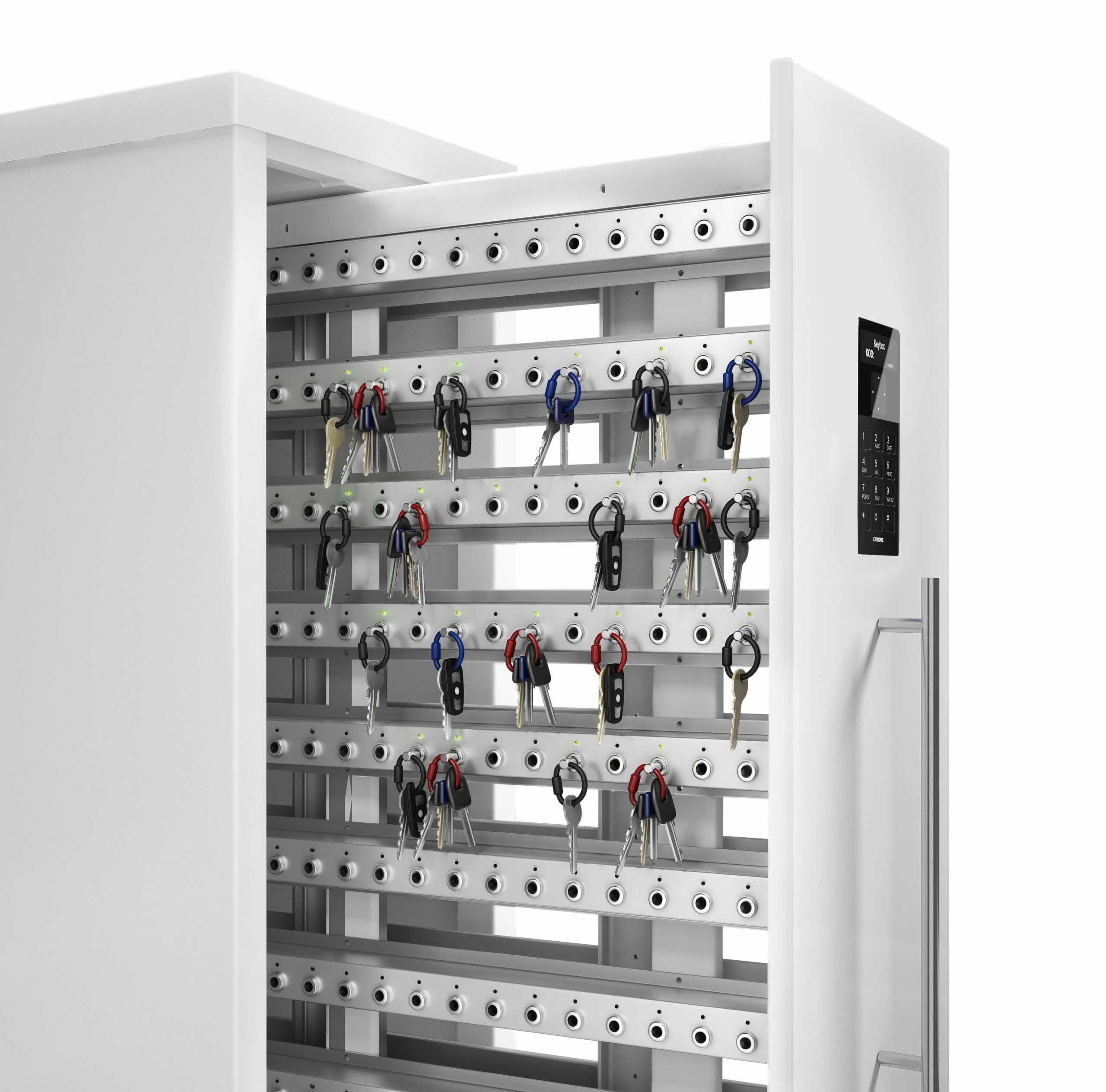

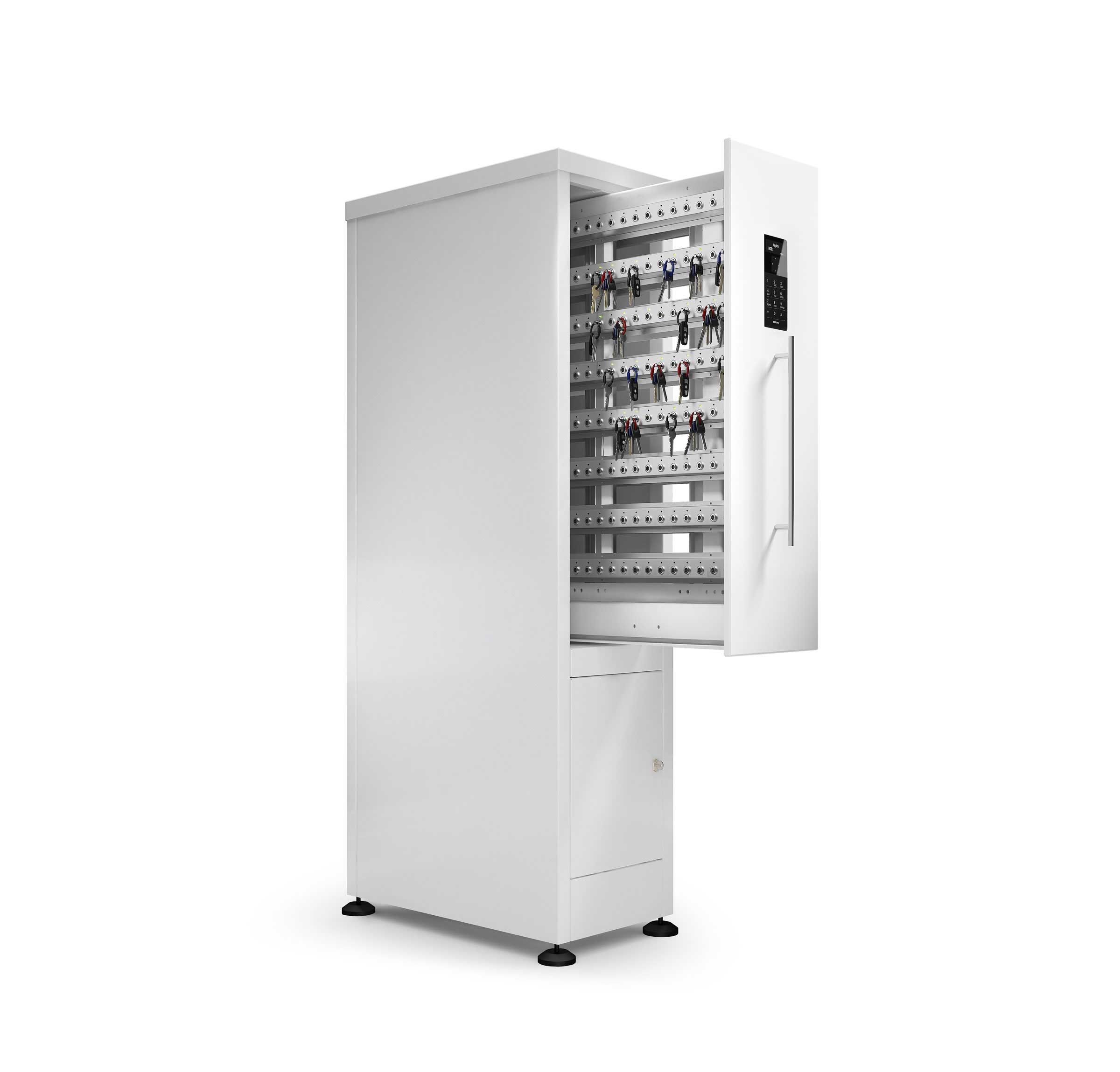

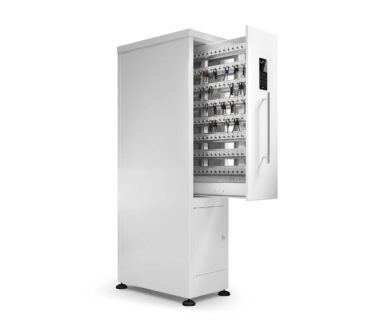

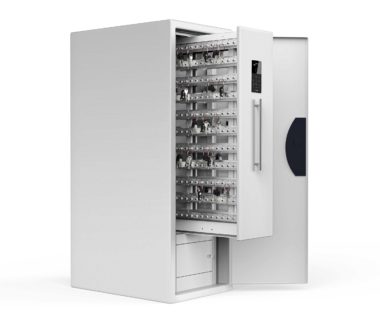

9600 SC

Keycontrol key cabinet with space for a maximum of 224 key positions.

9600 SC

Intelligent floor-standing key cabinet with key identification to monitor and control each individual key. Holds a maximum of 224 key positions but can be equipped with fewer positions and expanded when business needs change.

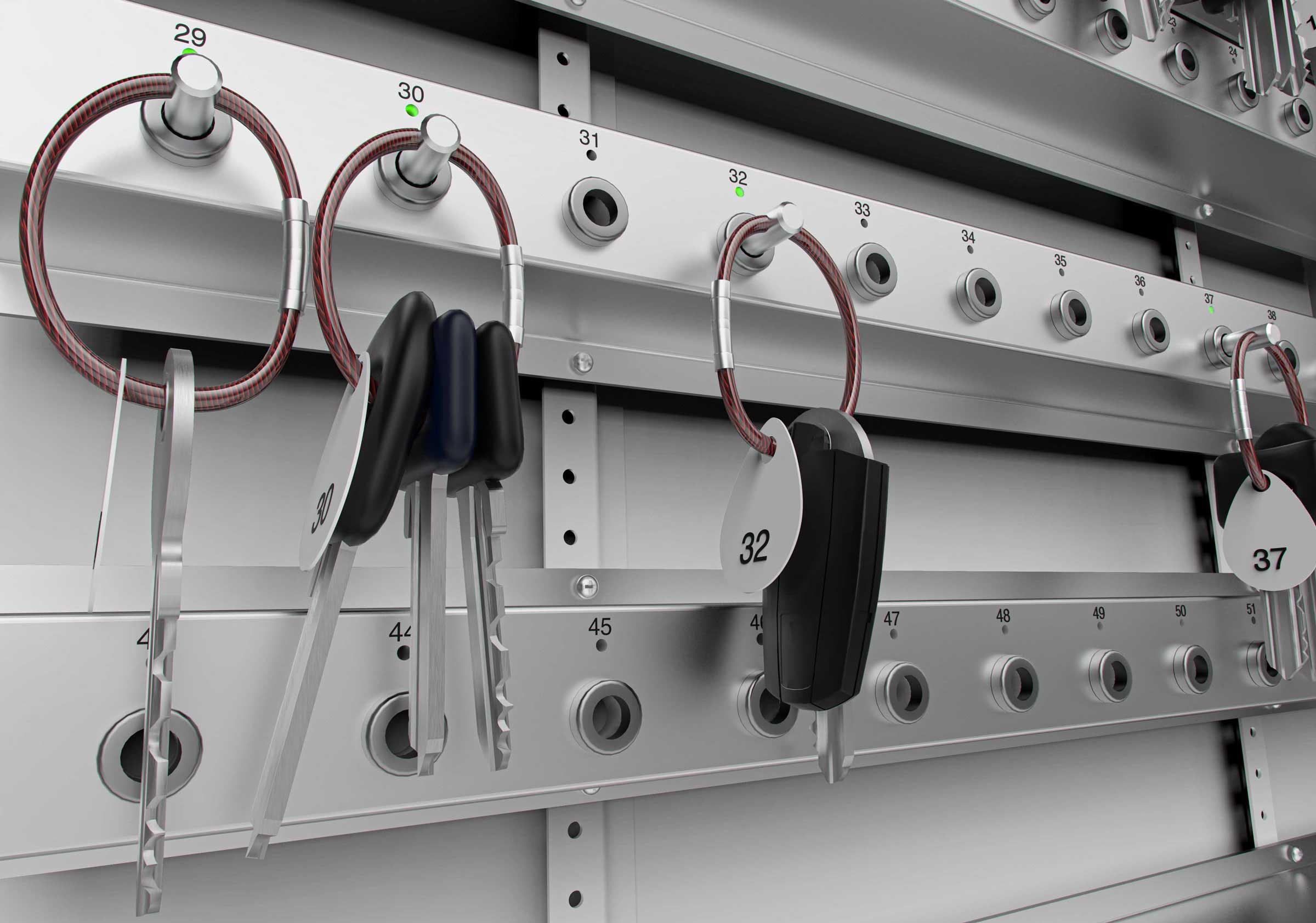

Key strips are mounted with standard spacing or customised for handling bulky or long items. Individual login via PIN or select card reader to use your existing RFID tags and cards for greater security.

Key management is administered with the KeyWin cloud service, which means complete traceability of keys achieved using a functional and user-friendly interface.

Specifications
– Max number of positions: 224
– Maximum number of key strips: 16
– Ext. dimensions (HxWxD): 1470 x 380 x 698 mm
– Weight, fully equipped: 130 kg
– Material: 2.25 mm galvanised steel
– Power: 230V
– Battery backup: 12V, 1.2Ah
– Network connection: Yes
– Software: KeyWin6
– Installation: Floor-standing

Accessories
– Card reader 13.56 mHz / 125 kHz
– Number plate
– Sealing cables
– Alcohol interlock

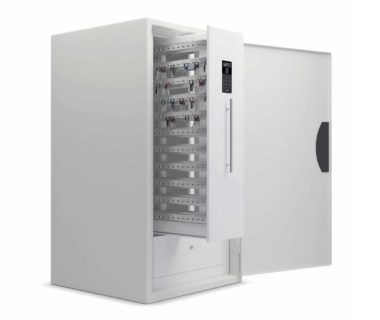

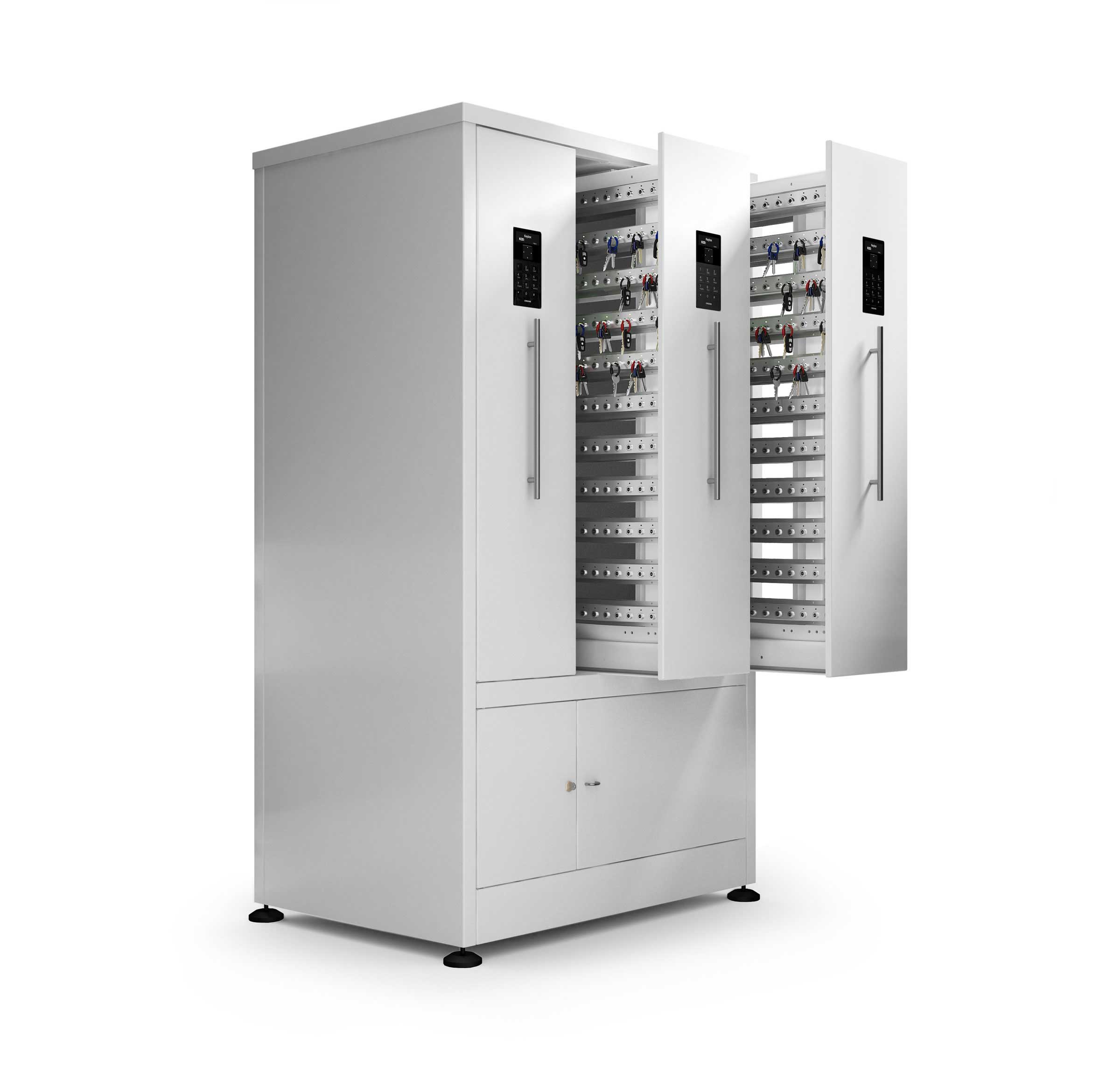

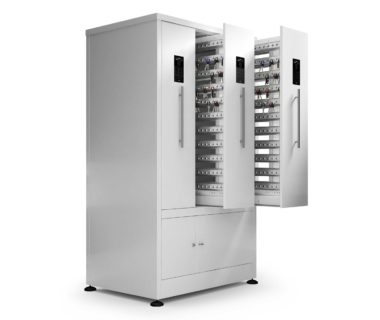

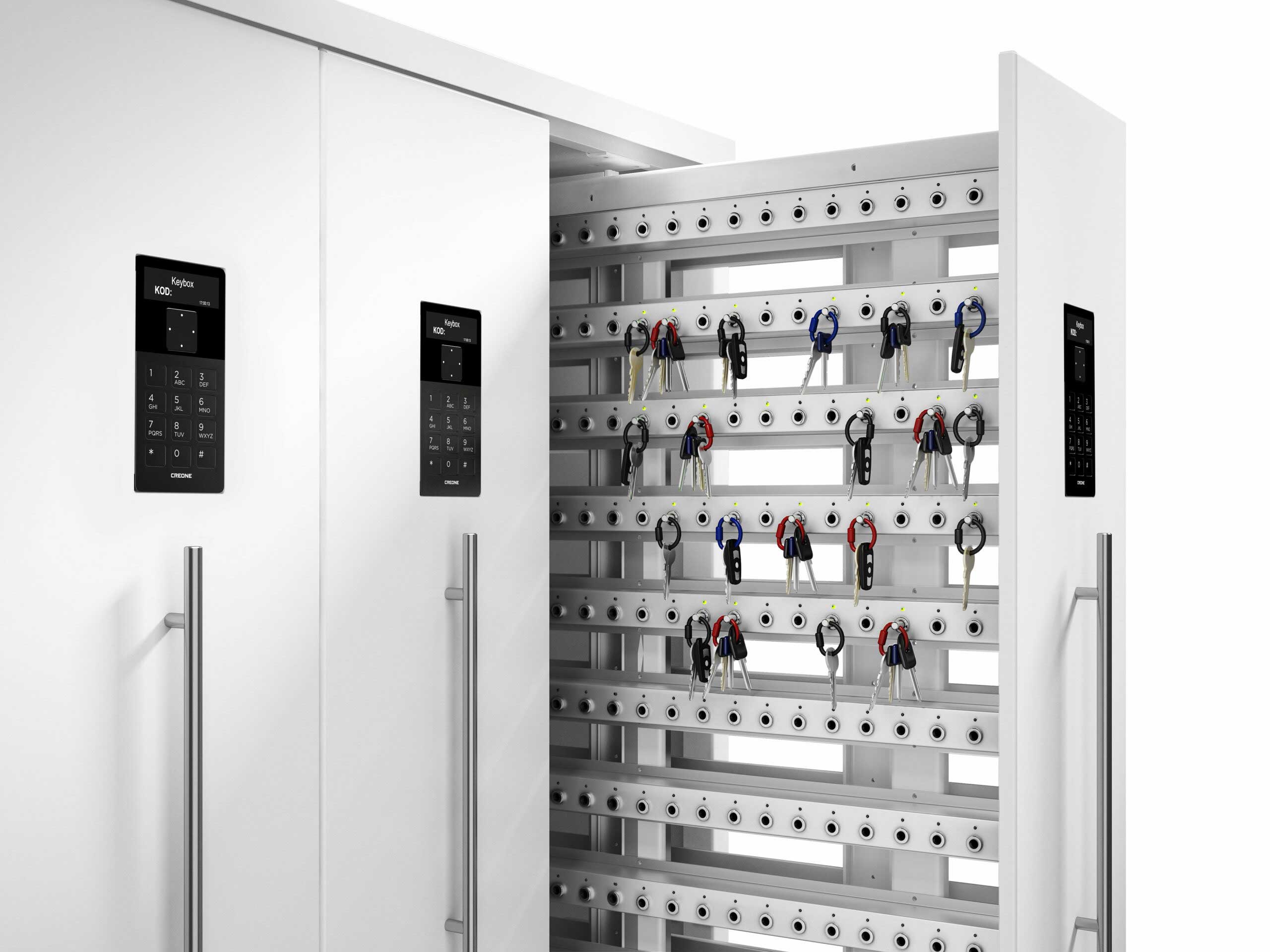

9700 SC

Keycontrol key cabinet with space for a maximum of 924 key positions.

9700 SC

Intelligent floor-standing key cabinet with key identification to monitor and control each individual key. Holds a maximum of 924 key positions but can be equipped with fewer positions and expanded when business needs change.

Key strips are mounted with standard spacing or customised for handling bulky or long items. The three login panels provide more opportunities to restrict access to keys by categorising the key stock or user permission levels. Individual login via PIN or select card reader to use your existing RFID tags and cards for greater security.

Key management is administered with the KeyWin cloud service, which means complete traceability of keys achieved using a functional and user-friendly interface.

Specifications
– Max number of positions: 924
– Maximum number of key strips: 66
– Ext. dimensions (HxWxD): 1720 x 980 x 690 mm
– Weight, fully equipped: 280 kg
– Material: 2.25 mm galvanised steel
– Power: 230V
– Battery backup: 12V, 1.2Ah
– Network connection: Yes
– Software: KeyWin6
– Installation: Floor-standing

Accessories
– Card reader 13.56 mHz / 125 kHz
– Number plate
– Sealing cables
– Alcohol interlock

9500 EC

Expansion cabinet for the Keycontrol series with 1 door and a maximum of 84 key positions.

9500 EC

Expansion cabinet that can accommodate a maximum of 84 key positions and is controlled via the main cabinet. A maximum of 1 expansion cabinet can be connected to each main cabinet, either 9400 SC or 9500 SC, but not selectable as a complement to the 9600 SC and 9700 SC.

Key management is administered with the KeyWin cloud service, which means complete traceability of keys achieved using a functional and user-friendly interface.

Specifications
– Max number of positions: 84
– Maximum number of key strips: 6
– Ext. dimensions (HxWxD): 730 x 746 x 140 mm
– Weight, fully equipped: 30 kg
– Material: 1.5 mm galvanised steel
– Power: 230V
– Battery backup: 12V, 1.2Ah
– Network connection: Yes
– Software: KeyWin6
– Installation: Walls

Accessories
– Number plate
– Sealing cables

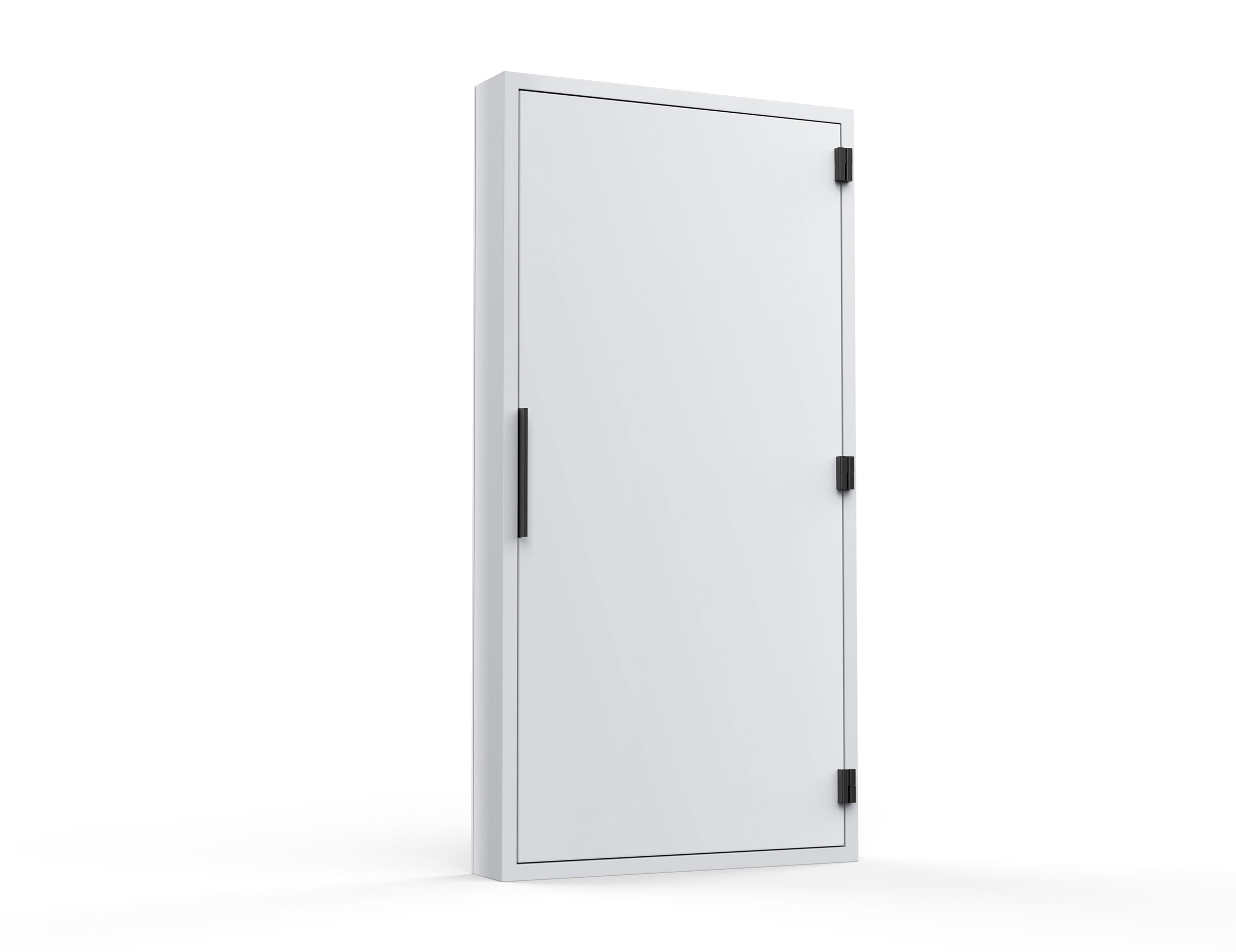

9550 EC

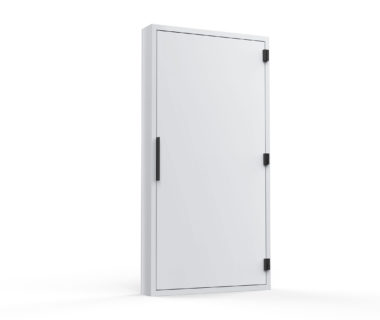

Expansion cabinet for the Keycontrol series with 1 door and a maximum of 210 key positions.

9550 EC

Expansion cabinet accommodating 210 key positions and controlled via a main cabinet. A maximum of 1 expansion cabinet can be connected to each main cabinet, which can be a 9400 SC, 9500 SC or 9550 SC, but it is not available as an add-on to the 9600 SC and 9700 SC.

Key management is administered with the KeyWin cloud service, which means complete traceability of keys is achieved using a functional and user-friendly interface.

Specifications
– Max. number of positions: 210
– Max. number of key strips: 15
– External dimensions (hxwxd): 1460x746x140 mm
– Weight, fully equipped: 70 kg
– Material: 1.5 mm galvanised steel
– Network connectivity: Yes
– Software: KeyWin6
– Installation: Wall

Accessories
– Number plate
– Sealing cables

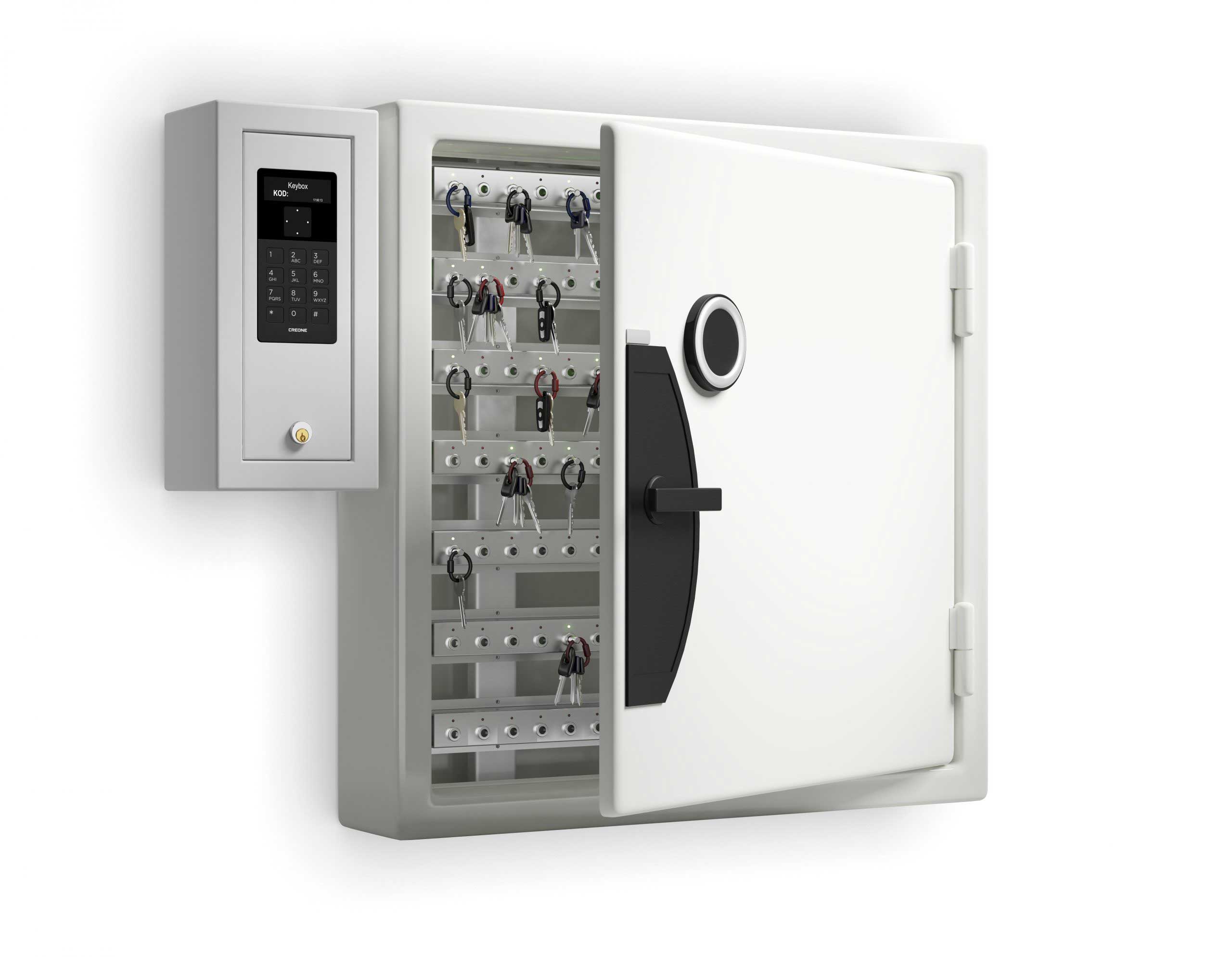

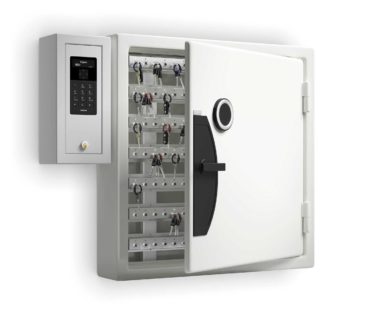

8500 KR

Security cabinet with a maximum of 98 key positions, 7 strips.

8500 KR

Intelligent key cabinet for businesses with high demands for security. Key identification to monitor and control each individual key, behind a rated shell protection in accordance with SSF3492. Holds a maximum of 98 key positions but can be equipped with fewer positions and expanded when business needs change.

Individual login via PIN or select card reader when using RFID tags and cards for greater security. Key management is administered with the KeyWin cloud service, which means complete traceability of keys achieved using a functional and user-friendly interface.

Specifications
– Max number of positions: 98
– Maximum number of key strips: 7
– Ext. dimensions (HxWxD): 730 x 650 x 250 mm
– Weight, fully equipped: 98 kg
– Material: 4 mm steel
– Power: 230V
– Battery backup: Optional extras
– Network connection: Yes
– Software: KeyWin6
– Installation: Wall-mounted (supplied with load reduction table)

Accessories
– Card reader 13.56 mHz / 125 kHz
– Number plate
– Sealing cables
– Battery backup 12/35/65 Ah

8600 KR

Security cabinet with a maximum of 308 key positions, 22 strips.

8600 KR

Intelligent floor-standing key cabinet for businesses with high demands for security. Key identification to monitor and control each individual key, behind a rated shell protection in accordance with SSF3492. Holds a maximum of 308 key positions but can be equipped with fewer positions and expanded when business needs change. Individual login via PIN or select card reader when using RFID tags and cards for greater security.

Key management is administered with the KeyWin cloud service, which means complete traceability of keys achieved using a functional and user-friendly interface.

Specifications
– Max number of positions: 308
– Maximum number of key strips: 22
– Ext. dimensions (HxWxD): 1600 x 575 x 850 mm
– Weight, fully equipped: 245 kg
– Material: 4 mm steel
– Power: 230V
– Battery backup: Optional extras
– Network connection: Yes
– Software: KeyWin6
– Installation: Floor-standing

Accessories
– Card reader 13.56 mHz / 125 kHz
– Number plate
– Sealing cables
– Battery backup 12/35/65 Ah

8700 KR

Security cabinet with a maximum of 616 key positions, 44 strips.

8700 KR

Intelligent floor-standing key cabinet for businesses with high demands for security. Key identification to monitor and control each individual key, behind a rated shell protection in accordance with SSF3492. Holds a maximum of 616 key positions but can be equipped with fewer positions and expanded when business needs change. Double login panels provide more opportunities to restrict access to keys by categorising the key stock or user permission levels. Individual login via PIN or select card reader when using RFID tags and cards for greater security.

Key management is administered with the KeyWin cloud service, which means complete traceability of keys achieved using a functional and user-friendly interface.

Specifications
– Max number of positions: 616
– Maximum number of key strips: 44
– Ext. dimensions (HxWxD): 1600 x 800 x 850 mm
– Weight, fully equipped: 345 kg
– Material: 4 mm steel
– Power: 230V
– Battery backup: Optional extras
– Network connection: Yes
– Software: KeyWin6
– Installation: Floor-standing

Accessories
– Card reader 13.56 mHz / 125 kHz
– Number plate
– Sealing cables
– Battery backup 12/35/65 Ah

9400 SC

Keycontrol key cabinet with space for a maximum of 42 key positions.

9400 SC

Intelligent key cabinet in a compact format, with key identification to monitor and control each individual key. Holds a maximum of 42 key positions but can be equipped with fewer positions and expanded when business needs change. Individual login via PIN or select card reader when using RFID tags and cards for greater security.

Key management is administered with the KeyWin cloud service, which means complete traceability of keys achieved using a functional and user-friendly interface.

Specifications
– Max number of positions: 42
– Maximum number of key strips: 3
– Ext. dimensions (HxWxD): 730 x 746 x 140 mm
– Weight, fully equipped: 25 kg
– Material: 1.5 mm galvanised steel
– Power: 230V
– Battery backup: 12V, 1.2Ah
– Network connection: Yes
– Software: KeyWin6
– Installation: Walls

Accessories
– Card reader 13.56 mHz / 125 kHz
– Number plate
– Sealing cables
– Alcohol interlock

9500 SC

Keycontrol key cabinet with space for a maximum of 84 key positions.

9500 SC

Intelligent key cabinet with key identification to monitor and control each individual key. Holds a maximum of 84 key positions but can be equipped with fewer positions and expanded when business needs change. Possibility to expand capacity further by connecting additional expansion cabinets. Individual login via PIN or select card reader when using RFID tags and cards for greater security.

Key management is administered with the KeyWin cloud service, which means complete traceability of keys achieved using a functional and user-friendly interface.

Specifications
– Max number of positions: 84
– Maximum number of key strips: 6
– Ext. dimensions (HxWxD): 730 x 746 x 140 mm
– Weight, fully equipped: 30 kg
– Material: 1.5 mm galvanised steel
– Power: 230V
– Battery backup: 12V, 1.2Ah
– Network connection: Yes
– Software: KeyWin6
– Installation: Walls

Accessories
– Card reader 13.56 mHz / 125 kHz
– Number plate
– Sealing cables
– Alcohol interlock

9550 SC

Keycontrol key cabinet with space for a maximum of 210 key positions.

9550 SC

Intelligent key cabinet with key identification to monitor and control each individual key. Holds a maximum of 210 key positions but can be equipped with fewer positions and expanded when business needs change. Possibility to expand capacity further by connecting additional expansion cabinets. Individual login via PIN or select card reader when using RFID tags and cards for greater security.

Key management is administered with the KeyWin cloud service, which means complete traceability of keys is achieved using a functional and user-friendly interface.

Specifications
– Max. number of positions: 210
– Max. number of key strips: 15
– External dimensions (hxwxd): 1460x746x140 mm
– Weight, fully equipped: 70 kg
– Material: 1.5 mm galvanised steel
– Electricity: 230V
– Battery backup: 12V, 7.2Ah
– Network connectivity: Yes
– Software: KeyWin6
– Installation: Wall

Accessories
– Card reader 13.56 mHz / 125 kHz
– Number plate
– Sealing cables
– Alcohol interlock

9600 SC

Keycontrol key cabinet with space for a maximum of 224 key positions.

9600 SC

Intelligent floor-standing key cabinet with key identification to monitor and control each individual key. Holds a maximum of 224 key positions but can be equipped with fewer positions and expanded when business needs change.

Key strips are mounted with standard spacing or customised for handling bulky or long items. Individual login via PIN or select card reader to use your existing RFID tags and cards for greater security.

Key management is administered with the KeyWin cloud service, which means complete traceability of keys achieved using a functional and user-friendly interface.

Specifications
– Max number of positions: 224
– Maximum number of key strips: 16
– Ext. dimensions (HxWxD): 1470 x 380 x 698 mm
– Weight, fully equipped: 130 kg
– Material: 2.25 mm galvanised steel
– Power: 230V
– Battery backup: 12V, 1.2Ah
– Network connection: Yes
– Software: KeyWin6
– Installation: Floor-standing

Accessories
– Card reader 13.56 mHz / 125 kHz
– Number plate
– Sealing cables
– Alcohol interlock

9700 SC

Keycontrol key cabinet with space for a maximum of 924 key positions.

9700 SC

Intelligent floor-standing key cabinet with key identification to monitor and control each individual key. Holds a maximum of 924 key positions but can be equipped with fewer positions and expanded when business needs change.

Key strips are mounted with standard spacing or customised for handling bulky or long items. The three login panels provide more opportunities to restrict access to keys by categorising the key stock or user permission levels. Individual login via PIN or select card reader to use your existing RFID tags and cards for greater security.

Key management is administered with the KeyWin cloud service, which means complete traceability of keys achieved using a functional and user-friendly interface.

Specifications
– Max number of positions: 924
– Maximum number of key strips: 66
– Ext. dimensions (HxWxD): 1720 x 980 x 690 mm
– Weight, fully equipped: 280 kg
– Material: 2.25 mm galvanised steel
– Power: 230V
– Battery backup: 12V, 1.2Ah
– Network connection: Yes
– Software: KeyWin6
– Installation: Floor-standing

Accessories
– Card reader 13.56 mHz / 125 kHz
– Number plate
– Sealing cables
– Alcohol interlock

9500 EC

Expansion cabinet for the Keycontrol series with 1 door and a maximum of 84 key positions.

9500 EC

Expansion cabinet that can accommodate a maximum of 84 key positions and is controlled via the main cabinet. A maximum of 1 expansion cabinet can be connected to each main cabinet, either 9400 SC or 9500 SC, but not selectable as a complement to the 9600 SC and 9700 SC.

Key management is administered with the KeyWin cloud service, which means complete traceability of keys achieved using a functional and user-friendly interface.

Specifications
– Max number of positions: 84
– Maximum number of key strips: 6
– Ext. dimensions (HxWxD): 730 x 746 x 140 mm
– Weight, fully equipped: 30 kg
– Material: 1.5 mm galvanised steel
– Power: 230V
– Battery backup: 12V, 1.2Ah
– Network connection: Yes
– Software: KeyWin6
– Installation: Walls

Accessories
– Number plate
– Sealing cables

9550 EC

Expansion cabinet for the Keycontrol series with 1 door and a maximum of 210 key positions.

9550 EC

Expansion cabinet accommodating 210 key positions and controlled via a main cabinet. A maximum of 1 expansion cabinet can be connected to each main cabinet, which can be a 9400 SC, 9500 SC or 9550 SC, but it is not available as an add-on to the 9600 SC and 9700 SC.

Key management is administered with the KeyWin cloud service, which means complete traceability of keys is achieved using a functional and user-friendly interface.

Specifications
– Max. number of positions: 210
– Max. number of key strips: 15
– External dimensions (hxwxd): 1460x746x140 mm
– Weight, fully equipped: 70 kg
– Material: 1.5 mm galvanised steel
– Network connectivity: Yes
– Software: KeyWin6
– Installation: Wall

Accessories
– Number plate
– Sealing cables

8500 KR

Security cabinet with a maximum of 98 key positions, 7 strips.

8500 KR

Intelligent key cabinet for businesses with high demands for security. Key identification to monitor and control each individual key, behind a rated shell protection in accordance with SSF3492. Holds a maximum of 98 key positions but can be equipped with fewer positions and expanded when business needs change.

Individual login via PIN or select card reader when using RFID tags and cards for greater security. Key management is administered with the KeyWin cloud service, which means complete traceability of keys achieved using a functional and user-friendly interface.

Specifications
– Max number of positions: 98
– Maximum number of key strips: 7
– Ext. dimensions (HxWxD): 730 x 650 x 250 mm
– Weight, fully equipped: 98 kg
– Material: 4 mm steel
– Power: 230V
– Battery backup: Optional extras
– Network connection: Yes
– Software: KeyWin6
– Installation: Wall-mounted (supplied with load reduction table)

Accessories
– Card reader 13.56 mHz / 125 kHz
– Number plate
– Sealing cables
– Battery backup 12/35/65 Ah

8600 KR

Security cabinet with a maximum of 308 key positions, 22 strips.

8600 KR

Intelligent floor-standing key cabinet for businesses with high demands for security. Key identification to monitor and control each individual key, behind a rated shell protection in accordance with SSF3492. Holds a maximum of 308 key positions but can be equipped with fewer positions and expanded when business needs change. Individual login via PIN or select card reader when using RFID tags and cards for greater security.

Key management is administered with the KeyWin cloud service, which means complete traceability of keys achieved using a functional and user-friendly interface.

Specifications
– Max number of positions: 308
– Maximum number of key strips: 22
– Ext. dimensions (HxWxD): 1600 x 575 x 850 mm
– Weight, fully equipped: 245 kg
– Material: 4 mm steel
– Power: 230V
– Battery backup: Optional extras
– Network connection: Yes
– Software: KeyWin6
– Installation: Floor-standing

Accessories
– Card reader 13.56 mHz / 125 kHz
– Number plate
– Sealing cables
– Battery backup 12/35/65 Ah

8700 KR

Security cabinet with a maximum of 616 key positions, 44 strips.

8700 KR

Intelligent floor-standing key cabinet for businesses with high demands for security. Key identification to monitor and control each individual key, behind a rated shell protection in accordance with SSF3492. Holds a maximum of 616 key positions but can be equipped with fewer positions and expanded when business needs change. Double login panels provide more opportunities to restrict access to keys by categorising the key stock or user permission levels. Individual login via PIN or select card reader when using RFID tags and cards for greater security.

Key management is administered with the KeyWin cloud service, which means complete traceability of keys achieved using a functional and user-friendly interface.

Specifications
– Max number of positions: 616
– Maximum number of key strips: 44
– Ext. dimensions (HxWxD): 1600 x 800 x 850 mm
– Weight, fully equipped: 345 kg
– Material: 4 mm steel
– Power: 230V
– Battery backup: Optional extras
– Network connection: Yes
– Software: KeyWin6
– Installation: Floor-standing

Accessories
– Card reader 13.56 mHz / 125 kHz
– Number plate
– Sealing cables
– Battery backup 12/35/65 Ah

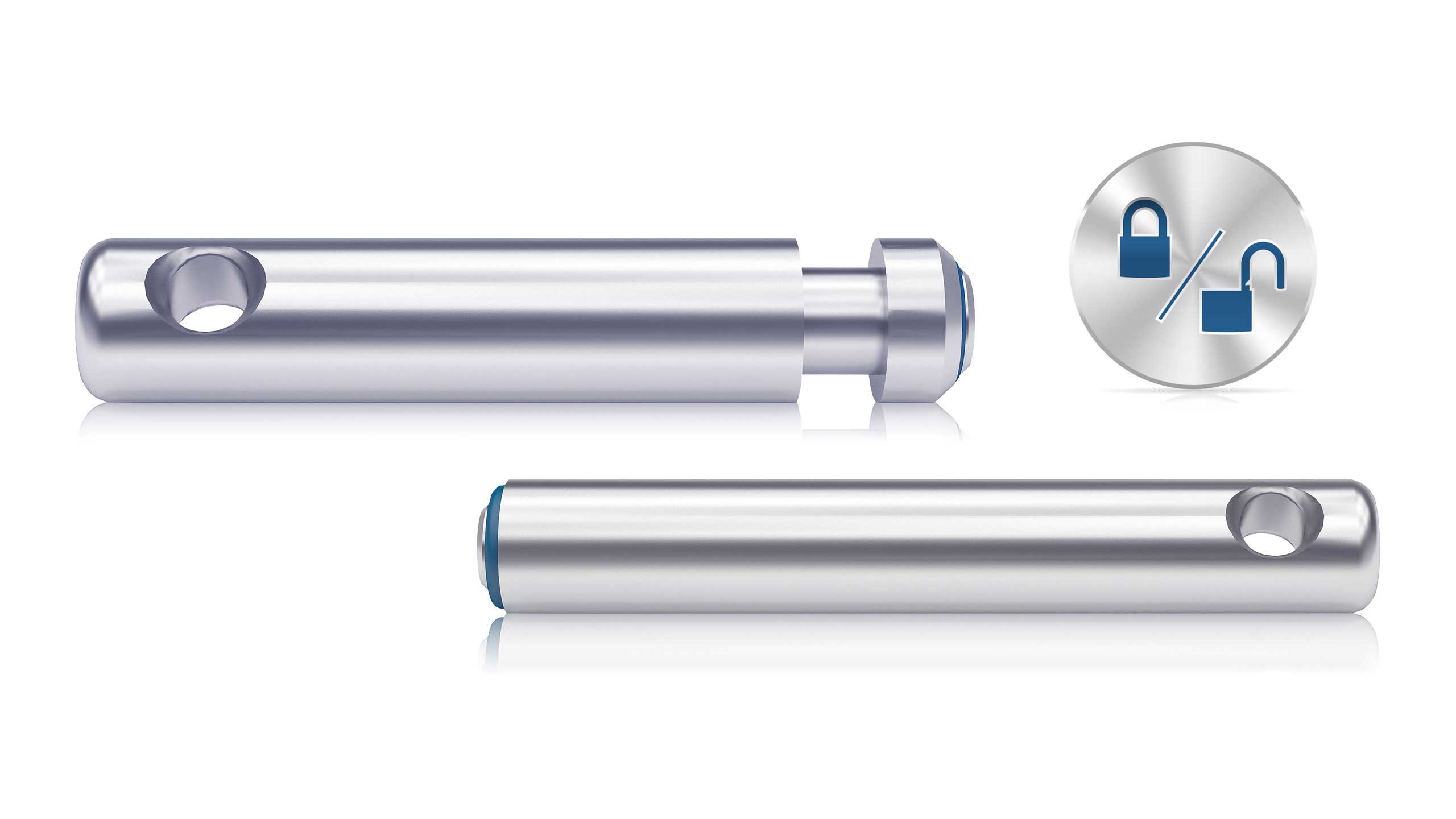

Locked & unlocked key positions

The IntelliPin is available in two versions. Non-lockable pegs sound the alarm immediately if a key is removed without it first having been authorised via the KeyWin software. Lockable pegs go a step further and physically lock the key/peg into the strip.

The IntelliPin key peg gives you total control of your key storage.

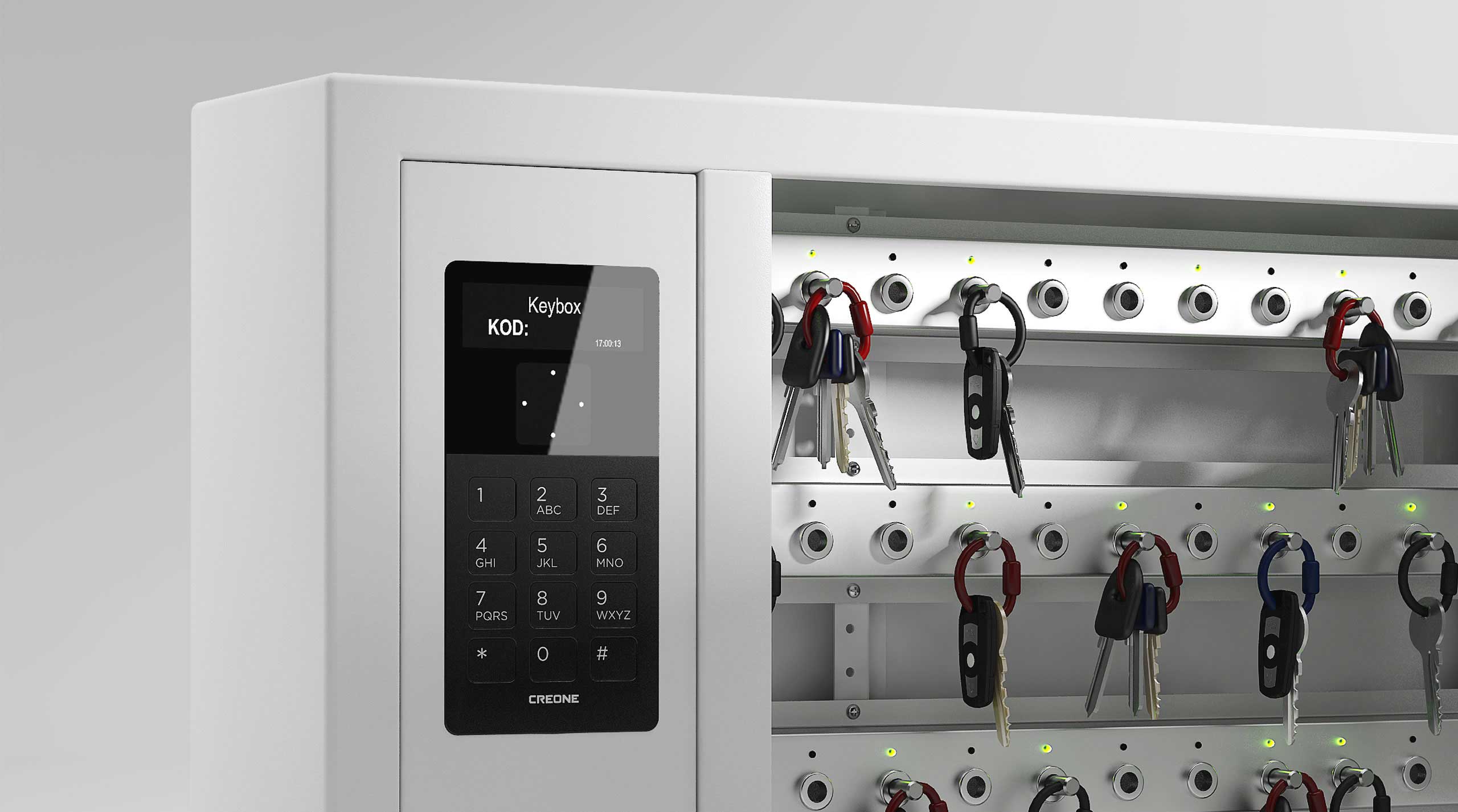

Personal code with display for overview

The key cabinet is equipped with a keypad for programming and entering personal codes. A clear display provides an excellent overview and menu navigation. Activate alarms, see who has taken out a specific key or opened a specific compartment, all directly on the display. With battery backup, you never need to worry about access to the cabinet.

Close-up of key cabinet 9400 SC display with easy menu management

Intelligent key peg

Even though the IntelliPin itself does not have any intelligence, it is because of each peg’s unique identity that the peg can log all events together with KeyWin. It is easy for you to look up who has had which key and when.

IntelliPin lockable key pegs sound the alarm immediately if the key is removed from the key cabinet.

Choose the number of key strips in your cabinet

You can choose between a locked and unlocked key strip, or combine the two in the same cabinet – thus starting with a smaller investment that can be expanded if needed.

Two KeyBox key cabinets in the 9400 SC version with two key strips for different key storage needs

Connect a card reader, RFID or alcohol interlock

The key cabinet can easily be connected to an external device such as a card reader, RFID or alcohol interlock for added security. Being able to combine an alcohol interlock with our key cabinets means that those under the influence of alcohol cannot access the cabinet and thus cannot get to their keys. This means it is safe to check that no one gets behind the wheel while drunk.

Key cabinet 9500 SC in the KeyControl series. Shows alcohol interlock access, which organises key management.
KeyWin6 logo which is software for key management systems

Gives you complete control. Easy to use. Easy to manage.

KeyWin is a program that simplifies your work in a flexible and easy to grasp way. You can monitor and control both key management and storage of valuables. KeyWin is easy to grasp and very simple to use. All events are logged and saved in KeyWin.

Discover
Key management with KeyBox key cabinet 9500 SC with KeyWin6 software that logs all events

Integrate with your other access systems

Administering different systems often involves duplication but also the risk of errors. KeyWin6 can be integrated into third party systems, such as access control systems, alarm units, car hire systems, hotel systems and so on.

  • Simplify your daily administration
  • Ready-built API for self-development
  • Ready-made integrations to existing systems
Key management integrations with different access systems
Integration with KeyWin key management software to the Command Centre security platform
Discover
Key management integrations with access systems

Book a demo

Let us today show you the best possible way to manage your keys and store your things.

Book now

Find a retailer

Use the map or search bar to find a retailer. Get help with your existing system or with choosing the right solution.

Search now
